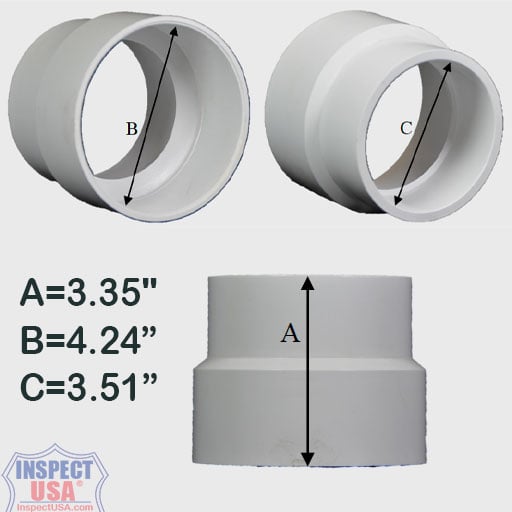

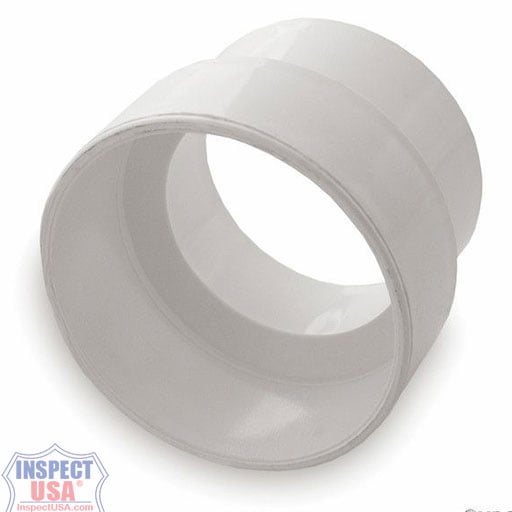

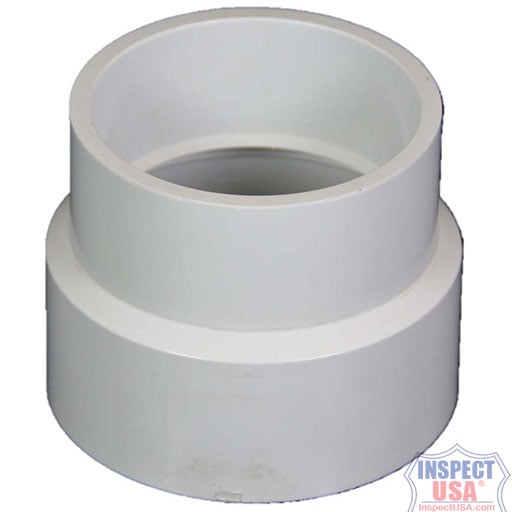

PVC NDS 3" SCH40 SPT X 4" SCH20 DWV/ S&D Adapter

PVC Adapter 3" SCH40 SPT x 4" SCH20 DWV/S&D (3P12)

Connect 3" Schedule 40 spigot pipe to 4" Schedule 20 DWV/Sewer & Drain pipe with this PVC increaser/reducer adapter. Also compatible with 4" S&D drainage products including channel drain outlets, drainage grates, and pop-up emitters. Hub x hub solvent-weld connection. For use in non-pressurized underground sewer and drainage applications with a maximum working pressure of 5 psi.

• Material: PVC Type I polyvinyl chloride
• Connection: Hub x Hub solvent-weld
• Molded in the USA
• Compatible pipe types: SDR-35, SDR-26, triple wall, and ASTM D-2729
• DWV — Drain, Waste, Vent (same dimensions as Schedule 40)
• S&D — Sewer and Drain pipe (SDR-35, SDR-26, etc.)
• SPT — Spigot (outside diameter of pipe)
• Maximum working pressure: 5 psi (non-pressurized applications only)

Specifications

ASTM Standards
