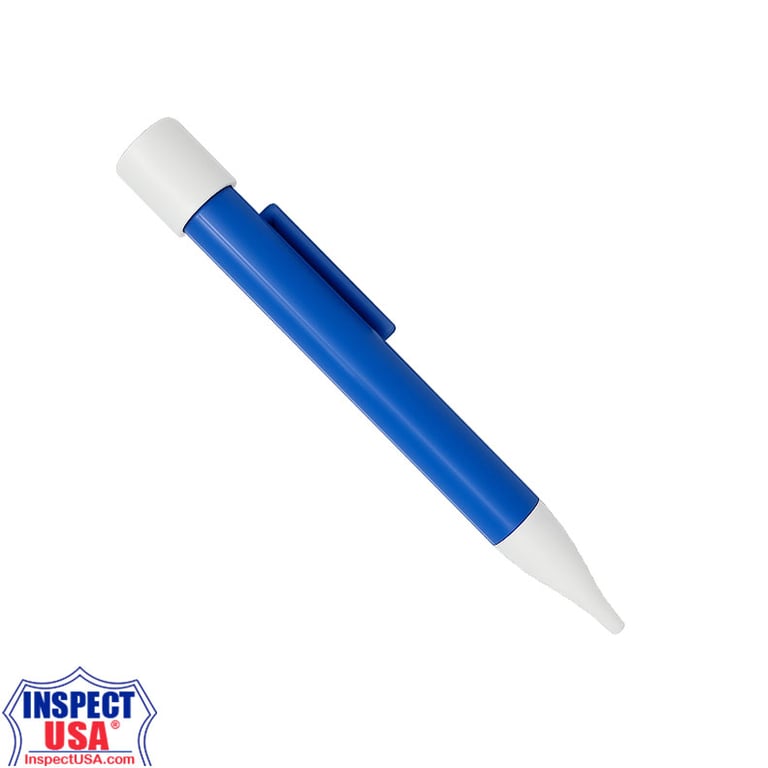

Non Contact AC Low Voltage Sensor Detector (AC3215) 24 to 90vAC

Pen Style AC Non Contact Voltage Sensor with Pocket Clip has both audible and visual indication and detects 24 to 90 volts AC.

The “Santronics AC Sensor” is a hand held device for determining the presence or absence of AC voltage in insulated wires, wall receptacles, fuses, junction boxes, switches, and any other voltage carrying electrical systems. It is not necessary to disconnect the system in question, because no contact is required for operation, and current flow is not necessary to locate voltage. Simply touch the plastic tip to a connection point or move it along an insulated wire. If AC voltage is present, the LED light in the probe tip will glow bright red. The illumination will stop at a break in the circuit or wire and this allows.

• Senses voltage from 24 to 90vAC.
• Power: (2) AAA 1.5 Volt Alkaline Batteries or equivalent (Included) Replace By Removing Threaded Cap.
• Operating Range: 50-1000vAC.
• Operating Temperature: -4°F to 131°F (-20°C to 55°C).
  NOTE: most batteries are not rated for below -4°F or above 125°F.
• Operating Humidity RH non-condensing:
  • 95%, 0-86°F (0-30°C).
  • 75%, 86°F to 104°F (30-40°C).
  • 45%, 104°F to 131°F (40-55°C).
• Altitude: up to 9842.5 feet (3000m).
• Voltage Max.: 1000 VAC, CAT IV.
