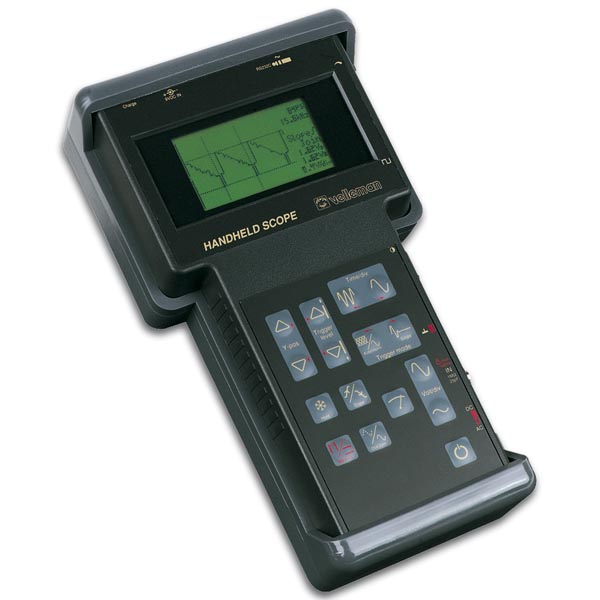

Oscilloscope Digital (K7105) True RMS, dB, Peak-to-Peak & DC

Model #: K7105

Condition: New

This item is No Longer Available

No Longer Available
Product 10 of 10

This handheld scope features options never seen in its category. It is packed with handy features which enables you to perform on-the-spot measurements quick, easy and accurate. Its high-contrast, wide viewing angle LCD screen enables operation under normal daylight conditions. All functions are accessible by means of a tactile keyboard with a pleasant touch feeling. The current operating mode is displayed on-screen. If desired, auto-setup mode takes care of all scope settings for instant visualization of waveforms. The marker function enables you to make accurate measurements of voltage, time and frequency. Acting as a DVM, it displays True RMS, dB, peak-to-peak and DC volts. With its built-in variable gain sine generator, it allows easy service of audio equipment, etc.… Probe transient response can be adjusted using the calibration output. Finally, a RS232 port enables screen data to be sent to a PC for use in different applications. A charge circuit with indicator LED for rechargeable batteries is provided.

Features:

  • true RMS or peak to peak read-out
  • dB measurements
  • markers for voltage and time
  • auto setup function
  • DC readout with zero reference function
  • frequency readout through markers
  • dot join function
  • screen hold function
  • grid or ruler function
  • adjustable trigger level
  • trigger mode: normal, auto or single
  • trigger edge: rising or falling
  • waveform memory (1 location only)
  • RS232 data output to computer
  • auto power off (can be disabled)

Specifications:

  • maximum sample rate for repetitive signals: 5MHz
  • maximum sample rate for single shot events: 0.5MHz
  • input impedance: 1Mohm // 20pF
  • maximum input voltage: 100Vp (AC + DC)
  • input coupling: DC, AC and GND
  • vertical resolution: 8 bit (6 bits displayed on LCD)
  • dB range: -73dB to +40dB
  • linearity: 1 bit (of 8 bit data)
  • LCD: 64 x 128 pixels
  • timebase: 2µs to 20s / div in 22 steps
  • input sensitivity: 5mV to 20V / div in 12 steps
  • sinewave generator: 400Hz / 1Vrms // 1Kohm (adjustable)
  • square wave output: 400Hz 3.5Vpp
  • power supply: 9VDC / 300mA
  • rechargeable battery: 6 x type AA / 800mAh
  • charge current: 90mA
  • charging time: 14 hours
  • autonomy: 5 hours
  • operating temperature: 32°F to 122°F
  • dimensions: 5.1 x 9.1 x 1.7"

Non-stocked item. Please allow 7 to 10 days for delivery.
