VOC Radon 220vAC Mitigation 4" Fan (28422) 4" Inlet & Outlet

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

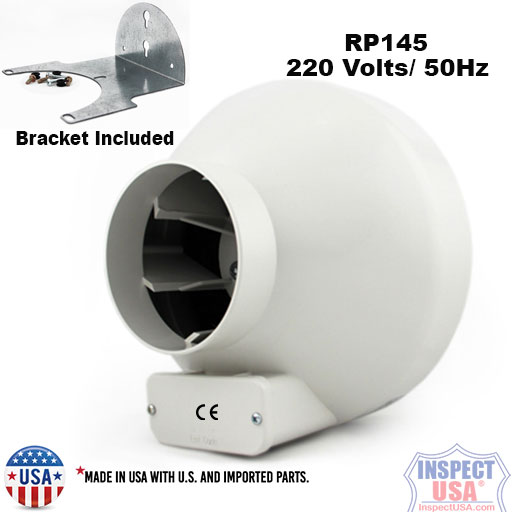

RadonAway 220v/50Hz 4" Radon Mitigation Fan with Bracket

The RadonAway Pro-Series RP145 has been designed for radon mitigation and is our most popular radon gas mitigation fan. RadonAway's RP Series fans, are engineered to provide superior performance and are ultra-quiet, as well as energy efficient. RP fans are ideal for most active soil depressurization (ASD) radon mitigation systems.

• Eternalast™ polycarbonate plastic housing.
• Made in USA with American & Imported parts.
• Energy efficient with very quiet operation.
• Continuous Duty; Class B Insulation; Thermally protected.
• Water-hardened motorized impeller for water resistance.
• Mounts on duct pipe with supplied mounting bracket
• Compact 9.7" overall diameter with a rugged 0.125" Noryl plastic housing
• Rated for Indoor / Outdoor and Residential / Commercial use
• ETL Safety Agency Listed - tested to uL Standards 507
• Meets all electrical code requirements ECR

Specifications:

• Dimensions: 9.7" wide x 8.5" tall.
• Duct outside diameter: 4.5" (compatible with schedule 40 4" PVC).

• RRNC: RF1 or RF2
• Power: 220vAC 50 Hz; 3000 RPM
• Storage temperature range: 32° to 100°F
• Operating temperature range: -20° to 120°F
• Maximum inlet air temperature: 80°F
• Weight: 5.5 lbs
• 5 year limited manufacturers warranty.

Optional components:

• 4" Fan Guard condensation bypass kit (76040-1) or 3" Fan Guard Kit (76040-2).
• 6' power cord with 3 prong plug & bushing (27005) or 8' power cord (27004).
• Couplings, Accessories & Installation Kits.
• Fan mounting bracket (25007).
• Analog 0 to 4.5" WC Easy Read Dynameter (50017) Blue Oil.
• Roof caps, varmint guards, adapters & accessories.
• 4" Inline Muffler (24007).
• Air Flow Alarm (28421).
• 4" HangerLok Self Clamping Pipe Hanger (76076).
• Fan Housing Cover Kit (28043) White.
• Fan Housing Cover Kit (28388) Black.

Download Fan Installation Instructions.

RadonAway Fan Replacement (Cross Reference) Guide.
