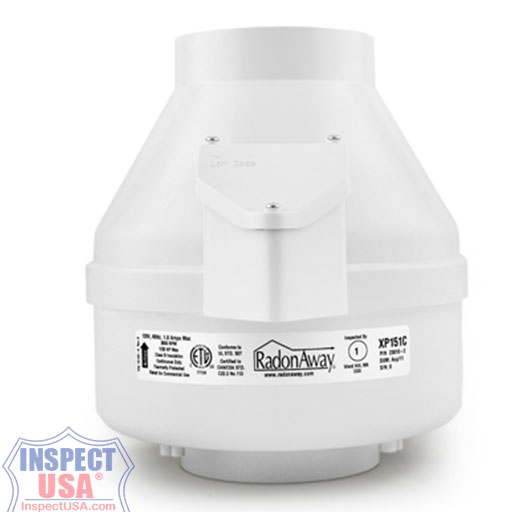

RadonAway Series C 4" Radon Fan (XP151c) Inline VOC Mitigation

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Designed especially for radon mitigation, The Radon Away XP Series fans provide superb performance and are ultra-quiet and attractive. They are ideal for most active sub-slab radon gas mitigation systems.

C in model number stands for Commercial

• Same size as XP151, drop-in replacement for Fantech FR125
• Replacement for Kanalflakt (T1 Turbo 5 and K4XL fans) with slightly different duct diameter (requires different flexible couplings)
• Energy efficient
• Thermally protected
• Rated for indoor or outdoor use
• Quiet operation
• 5 year hassle-free manufacturers warranty
• Motorized impeller
• Rugged 0.125 inch thick Noryl plastic housing
• Electrical box for hard wire or plug-in installations
• Compact 8.5 inch overall diameter
• ETL Safety Agency Listed - tested to UL Standards 507 for indoor or outdoor use
• Meets all ECR requirements
• Made in USA

Note: When installed in direct and/ or indirect sunlight, it has been reported that the fire retardant in the plastics can react to UV light, causing the fan housing to yellow in time. This does not effect the quality or operation of the fan. Some of the ways other contractors have addressed this is by spraying the housing with a clear UV spray like Krylon UV Resistant Clear or by installing a fan housing.

Specifications:

• Inlet/Outlet: 4.5" OD (4.0" PVC Schedule 40 size compatible)
• Power: 120V 60 Hz AC
• CFM:
  • 150 at 0 inches WC
  • 115 at 0.5 inches WC
  • 69 at 1 inch WC
• Mounting: PVC duct pipe or with optional mounting bracket
• Storage temperature range: 32° to 100° F
• Operating temperature range: -20° to 120° F
• Maximum inlet air temperature: 80° F
• Continuous Duty; Class B Insulation; Thermally protected
• 3000 RPM
• Weight: 6.0 lbs

Additional Fan Information:
Downloadable Fan Specifications/Sales Sheet (PDF format)
Downloadable Fan Installation Instructions (PDF format)

RadonAway Fan Replacement (Cross Reference) Guide (PDF format)
