Replacement Vertical On/Off Float Switch (73056) for EZ95

Replacement Vertical On/Off Float Switch (73056) for EZ95

These high quality float switches are designed for pump duty loads. The float switch is as normally closed or pump up (circuit is complete when the float is resting on the bottom rod stop).

• Operation:
  • Normally Closed (Pump Up)
• Ratings:
  • 13 AMPS @ 120/240 VAC
  • 1/2 HP @ 120/240 VAC
• Cord Length:
  • 10' SJTOW/SJOW 16-2 AWG
• Pumping Range:
  • Adjustable up to 6"
• Materials:
  • Enclosure and guide is ABS plastic. Float black polypropylene.
• Mounting:

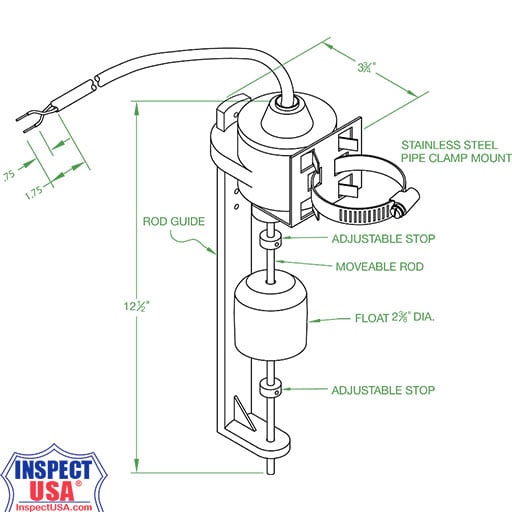

  • Stainless Steel pipe mount bracket allows for mounting to standard size sump discharge piping. (Using standard mounting holes for #8 screws on 2.06" centers are located under the housing)
