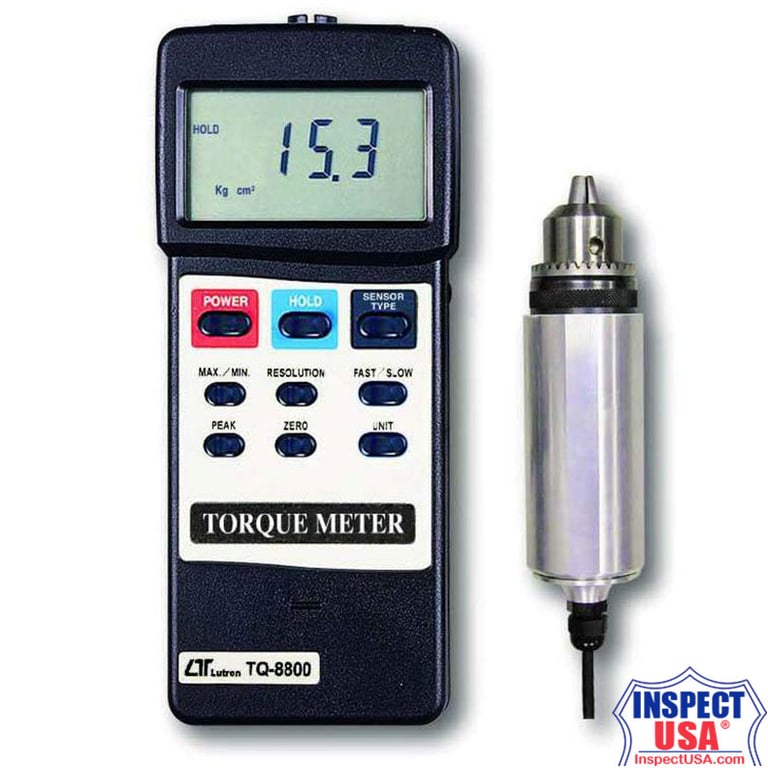

Lutron Torque Meter 0-15 Kg/cm (TQ-8800) with Probe & Case

Lutron Torque Meter 0 to 15 Kg/cm. Model number TQ-8800 is supplied with a Remote Probe and Carrying Case

This portable meter is used for bolt torquing, torque wrench calibration, switch or contact closure measurement and other industrial, QC, and materials testing applications.

• Professional Torque Measurement: Comes with a 15 Kg-cm torque probe, offering full set capabilities for precise torque measurement.
• Multiple Display Units: Allows selection between three display units (Kg-cm, LB-inch, Newton-cm) for versatile application needs.
• Peak and Data Hold Functions: Features peak value measurement and data hold functions to freeze and recall the desired readings, ensuring accurate data capture.
• High/Low Resolution and Sampling: Provides high/low resolution selection and fast/slow sampling options via push buttons, enhancing measurement flexibility.
• Robust and Convenient Design: Constructed with a heavy-duty and compact housing case, it includes a separate torque probe for easy operation, super large LCD display for clear readouts, and built-in low battery indicator with auto shut off function to save battery life.

Specifications:

• Display:
  • Size: 61 mm x 34 mm super large LCD
  • Digit Size: 15 mm (0.6")
• Units: Kg-cm, LB-inch, Newton-cm
• Measurement Range and Resolution:

• Accuracy: within 1.5% + 5d
• Sampling rate:
  • Fast: 125 seconds
  • Slow 333 seconds
• Peak Hold: Holds the peak value measured
• Data Hold: Freezes the desired reading
• Max/Min Recording: Records maximum and minimum readings
• Auto Shut Off: Saves battery life, with manual off option
• Power Supply: (1) 9V battery (006P, MN1604 or equivalent)
• Power Consumption: Approx. DC 20 mA
• Dimensions:
  • Meter: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)
  • Torque Probe: Round, 48 mm Dia. x 160 mm length
• Dimensions: 7" x 3" x 1.5"
• Probe size: 2" x 6.25"
• Weight:
  • Meter: 230 g (0.50 lb)
  • Probe: 600 g (1.32 lb)
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.

Accessories Included:

• Instruction Manual.
• 15 kg/cm torque probe and chuck assembly with 54" (140mm) cable.
• Carrying Case.

Optional Accessories:

• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• RS232 Cable UPCB-01.
