TPI Combustion Analyzer (DC711)

Model #: DC711

UPC: 00637623007118

Condition: New

0 Reviews
Be the first to review this product

Print This Page

Have a question?

Item may vary slightly from image.

List Price: ~~$1,094.95~~ $996.40

Available to ship on or before:9/25/26 - 9/30/26

Available Options

Special Order

Add Qty to Cart:

Product 17 of 20

Category: Combustion Analyzers

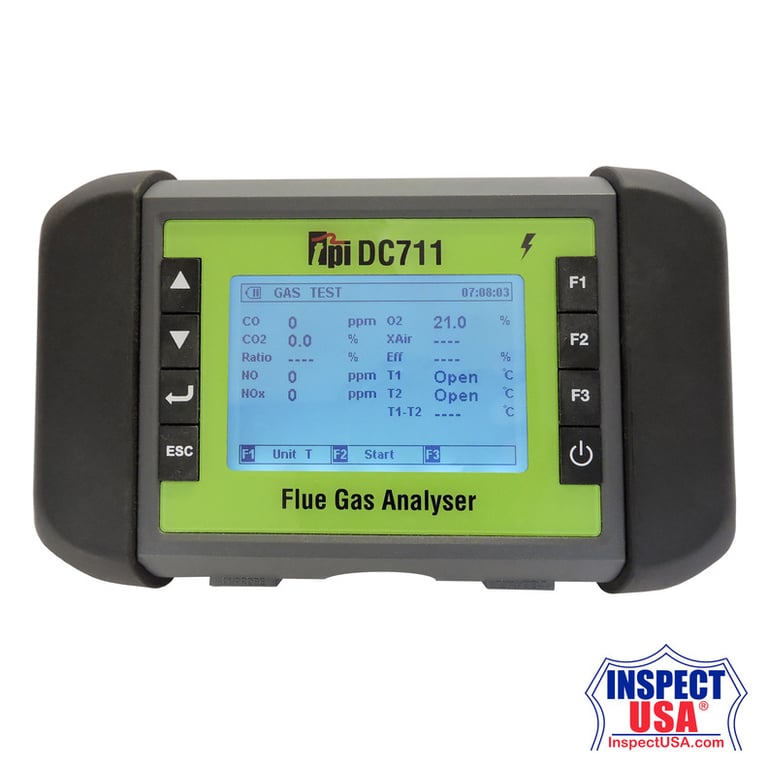

TPI Combustion Analyzer (DC711)

DC711 Flue Gas Analyzer. Designed to meet the needs of the busiest Combustion Engineer and Installer.

Easy-to-Use Smartphone App TPI View Smartphone app for iOS and Android allows easy documentation that you can share with your customer. Reduce paperwork and save time! Learn More

Easy to Use, Durable & Affordable!
Domestic or Commercial.
Upgradeable to include NOx sensor.
Multiple Fuel Options.
Hold, Save, Print & Send.
Clear, Easy to Read Screen.
Easy to Navigate Menu System.
Pressure & Tightness Test feature.
Differential Temperature for Flow & Return or Radiator Balancing.

Specifications

DC711 Specifications
Instrument
Operating Temperature Range	14°F to +122°F (-10°C to +50°C)
Battery / Battery Life	Li-ion 3.7V / > 6 Hours
Charger Input	USB "C" type
Fuels	Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
Pressure Ranges	mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
Display	Backlit Graphic LCD
Data Storage	100 sets of readings (30 sets for CO Build Up), multiple pages
Time and Date	24 Hour Real Time Clock
Dimensions	7.28" (185mm) x 4.92" (125mm) x 2.56" (65mm)
Weight	1.83lbs (830g)
Conforms to	EN50379 : Parts 1-3
Flue Temperature Probe
Construction	Pistol Grip with Stainless Steel Shaft
Hose Length	8.2' (2500mm)
Insertion Length	7.9" (200mm)
'K' Type Thermocouple Accuracy	+/- 0.3% of fullscale, +/- 2°F (1°C)
Maximum Temperature	1472°F (800°C)
Gases	Range	Resolution	Accuracy
Oxygen	0-25%	0.1%	+/- 0.3%
Carbon Monoxide (low)	0-10,000 ppm	1 ppm	(
			(>=100ppm) +/- 5%
Carbon Monoxide (high)*	0-100,000 ppm	0.001%	>10,000ppm: +/- 10%
Nitric Oxide *	0-5000ppm	1 ppm	+/- 5ppm (
			+/- 5% (
			+/- 10% (>1000ppm)
Carbon Dioxide	0-25%	0.1%	Calculated
CO/CO2 Ratio	0-0.999	0.001	Calculated
Combustion Efficiency	0-100%	0.1%	Calculated
* if fitted
Pressure Measurement
Selectable Ranges	mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
Range	– 150 mbar to + 150 mbar
		-15 kPa to + 15 kPa
		-60 inH2O to 60 inH2O
Resolution	0.001 mbar (0~9.999 mbar)
		0.01 mbar (10.00~149.99 mbar)
Accuracy	+/- 0.5 mbar FSD
Temperature Measurement
Input Type	K-Type thermocouple
Range	-58°F to 1832°F (-50°C to 1000°C)*
Resolution	1°F (1°C)
Accuracy	+/- (0.3% of rdg + 2°F) or +/- (0.3% of rdg + 1°C)
