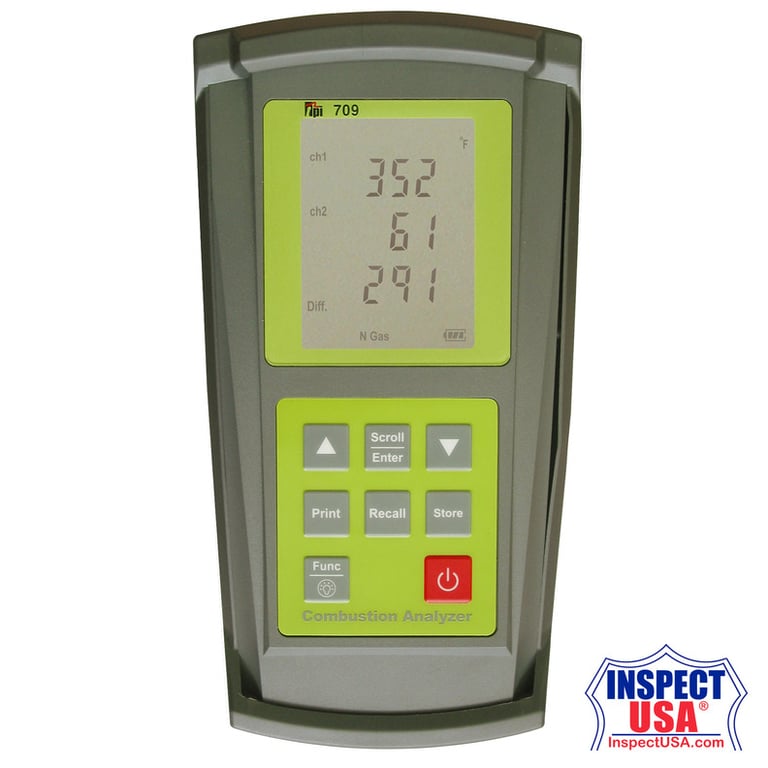

The TPI 709 Flue Gas Analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion.

The TPI 709 combustion analyzer uses state of the art electrochemical sensors. This sensor technology provides the longest lasting, most accurate and reliable means for performing combustion tests. The sensors in your analyzer will need to be replaced periodically and calibration is recommended once every year. The 709 will remind you when calibration is due by flashing "CAL DUE Err" for three seconds at start up.

Electrochemical sensors by nature are always active. Therefore the time the analyzer is off and not being used must be taken into account when determining sensor life. The sensors in your analyzer are warranted for two years. This warranty does not cover sensors damaged through misuse of the analyzer.

This configuration (709C7) is: 709 Combustion analyzer with A740, A773, 725L, CK13M (2ea).

• All the features of the 708 PLUS high resolution 0.001 in H20 differential manometer for high efficiency and oil equipment.
• Calculates combustion efficiency.
• Pump driven for fast response.
• Will not shut off if 15 ppm CO is present for increased safety.
• Optional A740 IR printer available for hard copies of test results.
• Built-in differential thermometer.
• Store function to save up to 50 readings.
• Push on fittings for fast and easy use.
• Large easy to read backlit display.
• Ten selectable fuels.

Specifications

• Carbon Monoxide (CO) Measurement: Range 0 to 10,000 ppm Resolution 1 ppm Accuracy +/-5ppm or 5% of reading whichever is greater.
• Oxygen (02) Measurement: Range 0 to 25% Resolution 0.1% Accuracy ±0.3%.
• Carbon Dioxide (CO2): Range 0 to 25% Resolution 0.1% Calculated Value.
• Nitric Oxide Measurement: N/A.
• NOX Measurement: N/A.
• Temperature Measurement: Range -40 to 1472°F, or -40 to 800°C Resolution 1°F or °C Accuracy (K-type) ±0.3%, ±2°F or ±1°C.
• Draft/Pressure Measurement: Selectable Ranges mBar,kPa, and inH2O Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60 inH2O to +60 in H20 Resolution 0.001 inH2O Accuracy ±0/5% fsd.
• Gross/Net Efficiency: Range 0 to 100% Resolution 0.1% Calculated Value.
• CO/CO2 Ratio: Range 0 to 0.999 Resolution 0.001 Calculated Value.
• Operating Temperature: 14°F to 122°F (-10°C to 50°C).
• Battery Type: 1.5V AA (3).
• Selectable Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse.
• Display Type: Backlit 3 line LCD.
• Data Storage: 50 Locations.
• Data Logging: N/A.
• Print Capability: Yes, via optional IR printer (A740).
• PC Communication: N/A.
• Date and Time Function: 24 Hour Real Time Clock.
• Dimensions: 200mm x 90mm x 60mm.
• Weight: 500g.
• Conformity: BS7927 (and the draft BS7967).

Optional Components

• TP-A007 NIMH battery pack for 712
• TP-A733 Calibration kit for model 705 and 707, 100PPM CO gas, regulator and tubing
• TP-A740 IR printer
• TP-A746 2 rolls replacement paper for the A740
• A746BULK 100 rolls of replacement paper for the A740
• TP-A747 AC Adapter for A740
• TP-A748 Hot air probe assenbly
• TP-A749 Confined space entry probe
• TP-A760 CO sensor
• A760S Smart CO sensor fo 717 and 717R
• TP-A761 O2 sensor
• A761S Smart O2 sensor fo 717 and 717R
• TP-A762 In line particle/water filter (includes housing)
• A762F In line particle/water filters (package of
• TP-A763 Mini pump protection filter
• TP-A764 Exhaust spigot
• TP-A765 Rubber boot for 707, 708, 712, 714 and 715
• TP-A766 AC charger
• TP-A767 IRDA adapter
• TP-A768 Carrying case
