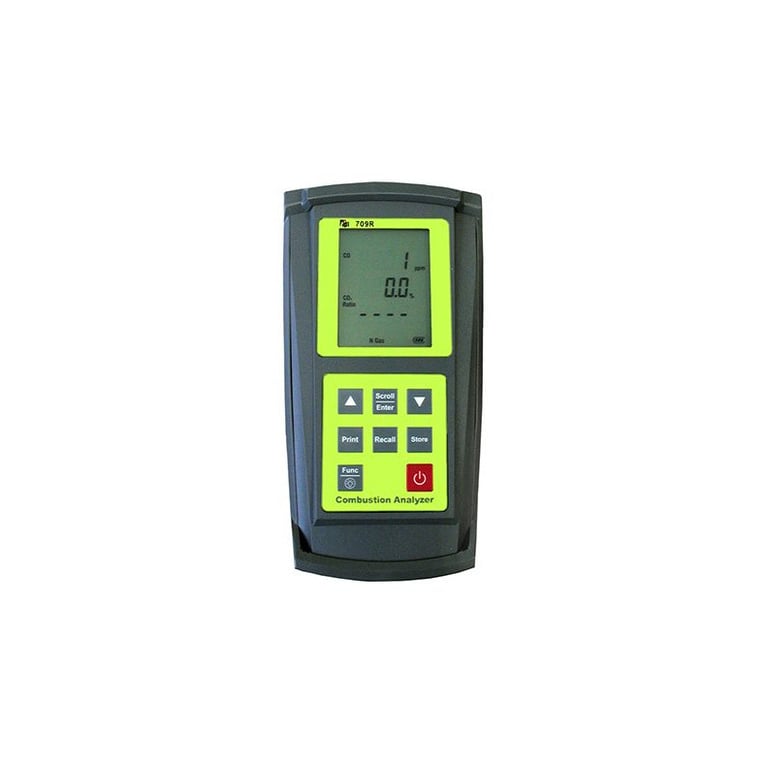

TPI Combustion Efficiency Flue Gas Analyzer (TP-709R)

TPI Combustion Efficiency Flue Gas Analyzer (TP-709R)

The TPI 709R Flue Gas Analyzer w/Rechargeable Battery is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion.

The TPI 709R Flue Gas Analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion.The instrument is ruggedly constructed and comes with a 3 Year unitand 2 Year sensor Guarantee.

The TPI 709R combustion analyzer uses state of the art electrochemical sensors. This sensor technology provides the longest lasting, most accurate and reliable means for performing combustion tests. The sensors in your analyzer will need to be replaced periodically and calibration is recommended once every year. The 709R will remind you when calibration is due by flashing "CAL DUE Err" for three seconds at start up.

• All the features of the 709 PLUS Rechargeable Batteries.
• High resolution 0.001 in H20 differential manometer for high efficiency and oil equipment.
• Calculates combustion efficiency.
• Pump driven for fast response.
• Will not shut off if 15 ppm CO is present for increased safety.
• Optional A740 IR printer available for hard copies of test results.
• Built-in differential thermometer.
• Store function to save up to 50 readings.
• Push on fittings for fast and easy use.
• Large easy to read backlit display.
• Ten selectable fuels.

Specifications

• Operating Temperature Range: 14°F to +122°F (-10°C to +50°C).
• Battery / Batery Life: Rechargeable Ni-MH / > 6 Hours.
• Charger Input Voltage: 115V or 230V : 50/60 Hz AC.
• Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse.
• Pressure Ranges: mbar, kPa & inH2O.
• Display: Backlit Graphic LCD.
• Data Storage: 50 sets of readings, multiple pages.
• Time and Date: 24 Hour Real Time Clock.
• Dimensions: 7.8" (200mm) x 3.5" (90mm) x 2.4" (60mm).
• Weight: 500g.
• Casing: Rubber Boot as Standard.
• Switch Off: Failsafe.
• Exhaust: Safety Spigot.
• Conforms to: EN50379.
• Construction: Pistol Grip with Stainless Steel Shaft.
• Hose Length: 8.2' (2500mm).
• Insertion Length: 7.9" (200mm).
• 'K' Type Thermocouple Accuracy: +/- 0.3% of fullscale, +/- 2°F (1°C).
• Maximum Temperature: 1472°F (800°C).
• Selectable Ranges: mbar, kPa and inH2O.
• Range: - 150 mbar to + 150 mbar.
• Resolution: 0.01 mbar & 0.1 mbar.

Optional Components

• TP-A007 NIMH battery pack for 712
• TP-A733 Calibration kit for model 705 and 707, 100PPM CO gas, regulator and tubing
• TP-A740 IR printer
• TP-A746 2 rolls replacement paper for the A740
• A746BULK 100 rolls of replacement paper for the A740
• TP-A747 AC Adapter for A740
• TP-A748 Hot air probe assenbly
• TP-A749 Confined space entry probe
• TP-A760 CO sensor
• A760S Smart CO sensor fo 717 and 717R
• TP-A761 O2 sensor
• A761S Smart O2 sensor fo 717 and 717R
• TP-A762 In line particle/water filter (includes housing)
• A762F In line particle/water filters (package of
• TP-A763 Mini pump protection filter
• TP-A764 Exhaust spigot
• TP-A765 Rubber boot for 707, 708, 712, 714 and 715
• TP-A766 AC charger
• TP-A767 IRDA adapter

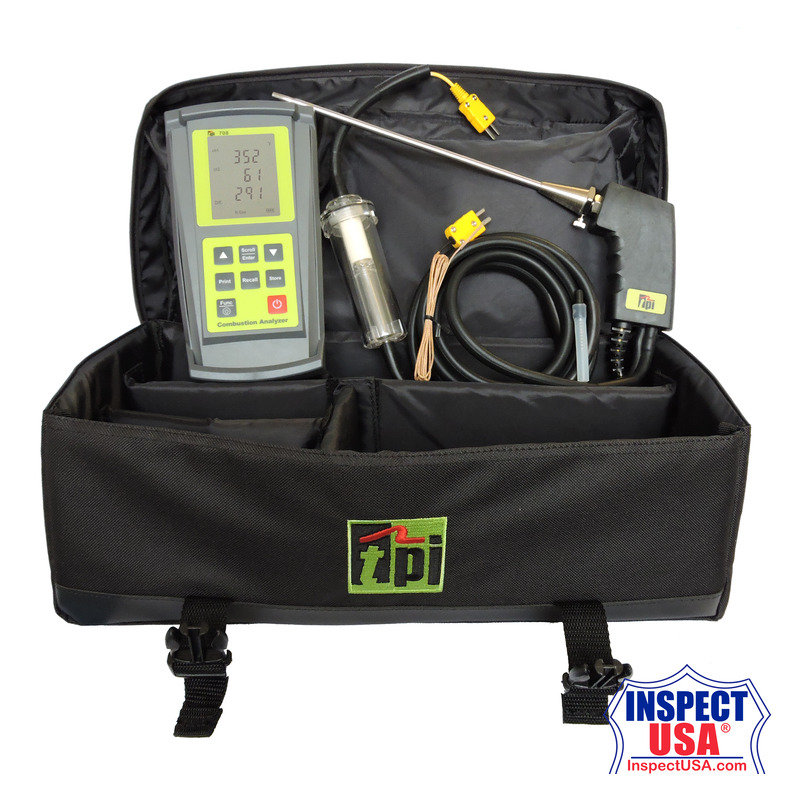

• TP-A768 Carrying case
