TPI Dual Input Differential Manometer (621C3)

TPI Dual Input Differential Manometer (621C3)

Dual Differential Input Manometer with ±120 inH2O range and 0.01 in H2O resolution. Seven units of pressure: inH2O, mbar, KPa, PSI, mmH2O, mmHg, inHg, Auto power off, Backlight display, Zero function, Trim mode to stabilize readings.

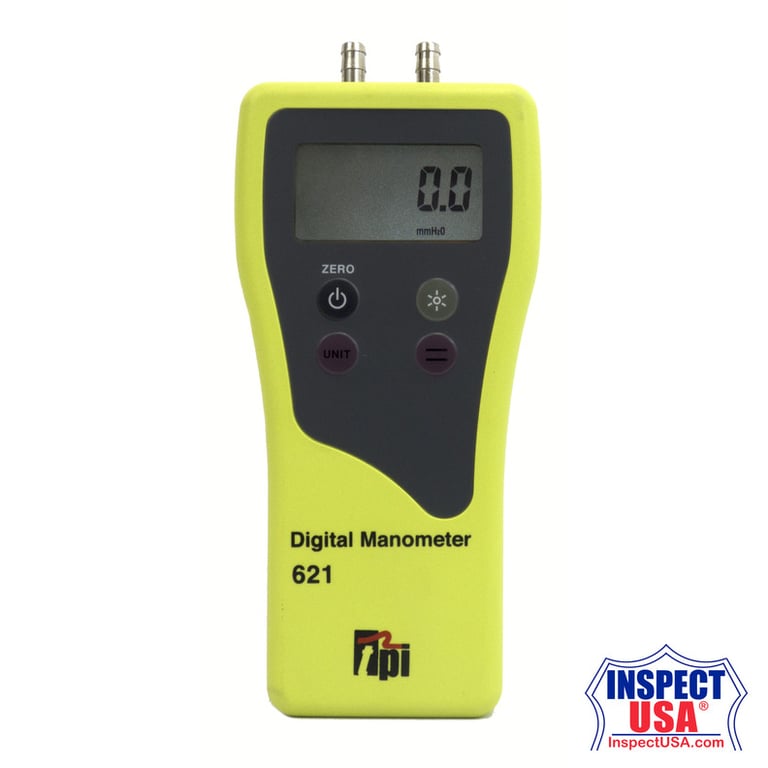

The TPI 621 is a hand held pressure meter with superior resolution.

All of these models measure over the range of -40.0 to +120.0 mbar. Each unit has a resolution of 0.01 mbar to +19.00 mbar and automatically auto-ranges above ± 19.00 mbar to 0.1 mbar resolution. Each model is supplied complete with carry pouch, battery and instruction manual.

This configuration (621C3) is: Dual input, 0.001 resolution inH2O w/ A613, two A603, two A605, A908, and two A776.

• Dual input with +/-120" H2O range.
• 0.01" H2O maximum resolution.
• Seven units of measure (mbar, kPa, PSI, mmHg, inHg, mmH2O, inH2O).
• Display – 4 digit with backlight.
• Smooth – Stabilizes display when measuring fluctuating pressures.
• Auto Off: Conserve battery power.

Specifications

• Measurement Range: ±120" H2O.
• Display: 5 Digit LCD with backlight.
• Input Type: Dual Differential (1/4" Barbed).
• Resolution (max): 0.01" H2O.
• Accuracy: +/-(0.5% of reading + 5 digits).
• Functions: One Touch Zero, Back-light, Smoothing.
• Units of Measure: 1 Unit (inH2O).
• Battery Type: 9V Alkaline.
• Battery Life: 80 hours (Typical).
• Auto Power Off: 40 minutes.
