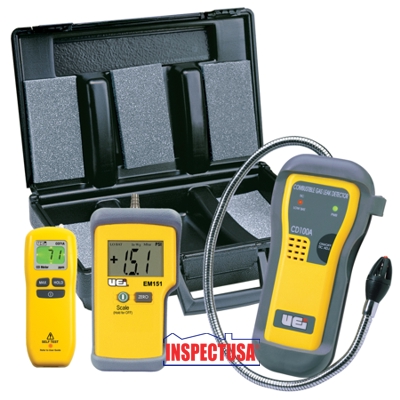

UEI LP Pro Kit PLUS Combustible Gas, Manometer & CO (LPKITPLUS)

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

UEI LP Pro Kit PLUS Combustible Gas, Manometer & CO

CD100A Gas Leak Detector Features:

• Fully adjustable (thumbwheel) steady tic rate accelerates as the sensor tip approaches a leak
• Tip light to illuminate area being tested
• Replaceable sensor
• Adjustable tick rate to locate leaks quickly
• Fast response time < 2 seconds to 40% LEL
• Long 18" gooseneck for hard to reach areas
• Visual leak detection by color-coded LED's
• Precision sensor detects even the smallest leaks
• Long, slim 18" gooseneck probe and bright LED tip light to find combustible gas leaks in tight areas
• Detects a wide variety of gases, including some toxic gases and nuisance vapors. The following represents only a portion of the more common gases it will detect:
  • Combustible
    • Natural Gas (Methane)
    • Gasoline
    • Propane
    • Jet Fuel
    • Tolulene
    • Ethylene oxide
    • Ammonia
    • Lacquer Thinner
    • Acetylene
    • Halon
    • Industrial Solvents
    • Naptha
    • Combustible Refrigerants
    • Butane
    • Alcohol
  • Other:
    • Steam
    • Hydrogen Sulfide
    • Smoke
    • Acetone Ammonia
• User adjustable alarm preset levels
• Adjustable tick rate & visual detection LED
• Headphone jack
• Low battery indicator

Specifications:

• Sensor: Solid state conductivity (semiconductor)
• Sensitivity: <50ppm methane in air
• Probe length: 18" obedient gooseneck
• Warm up time: Approx 10 seconds
• Response time: <1 second
• Duty cycle: Continuous
• Operating temperature: 32° to 122° F
• Operating humidity: 10 to 90% RH (non condensing)
• Power: (1) 9v alkaline battery
• Battery life: approximately 5 hours of continuous use
• Dimensions: 8" x 4" x 1.5" (add approx 1" to height & width to account for coiled cable)
• Weight: 17oz (with batteries installed)

Supplied with:

• Sensor cap with lighted tip
• Instruction manual
• Battery
• Rubber boot protects instrument (Ruggedized)
• 1 year limited warranty (sensor excluded)

• Download Owner's manual (PDF 444kb)
• Replacement Sensor Tip for CD100A or CD200
• Replacement Sensor Cap CD100A or CD200

EM151 Digital Manometer Features

• Single Input measures positive and negative pressure to 20" WG (water gauge)
• Auto power off after 5 minutes of no activity
• Rubber-boot (ruggedized) with built-in magnet
• Simple 2 button operation
• Measures in inches water gauge
• Time-saving alternative to U-tube pressure measurements
• One year limited warranty
• MIN/MAX value capture
• Data hold
• Back-lit display

Specifications:

• Operating range: 32° to 104° F (0 to 40° C)
• Operating humidity: 10 to 90% RH non-condensing
• Power: 1 9v battery (included)
• Battery Life: Approx 50 hours with alkaline battery

Supplied with:

• 2 pieces of 3/8" tubing
• Instruction manual
• 2 3/8" brass fittings (BF100)
• 9v alkaline battery
• 3 years limited manufacturers warranty

Optional: Padded UEI Carrying Case (AC319) with Inside Pocket & Carrying Strap

Link to Pressure Conversion Calculator (must have JAVA enabled)

Download Users Manual (PDF format)

This ground breaking, innovative product from UEi takes CO detection to the next level. The CO Detective is slim and trim to be on the case when it’s needed. This CO Detective has a flashing tri-colored LED, and an audible alarm to warn you that it is hot on the trail. With a backlit display and continuous readings, making it easy to view in dark areas. This new high technology tool is fast and accurate, it’ll solve the CO case fast.

CO71A Digital Carbon Monoxide Detector Features:

• One button ON with auto zero
• CO sensor self test function
• Tri-color LED indicates concentrations at 3 levels complying with residential and work place standards
• Auto Zero calibration activates upon turn on
• MAX CAPTURE continually updates to provide the highest CO reading
• Backlit LCD display (displays 0 to 999 ppm)
• Audible Alarm triggers above 35 ppm increasing intensity with higher levels of dangerous CO concentration
• Made in the UK
• Low battery indicator

Specifications:

• Range: 0 to 999 ppm
• Resolution: 1ppm
• Accuracy: ± (3% of reading + 1ppm)
• Visual indication: LCD & LED
• LED display:
  • Red: > 35 ppm
  • Yellow: 10 to 34 ppm
  • Green: 2 to 9 ppm
  • None lit: 0 to 1 ppm
• Audible alarm: preset at 35 ppm
• Operating temperature: 32° to 104° F (0° to 40° C)
• Startup time auto zero: approximately 50 seconds
• Power: 9v alkaline battery (included)

Supplied with:

• Faux leather carrying case with integral belt clip
• Operating instructions
• Three year limited manufacturer's warranty

Download User's Manual (PDF format)
