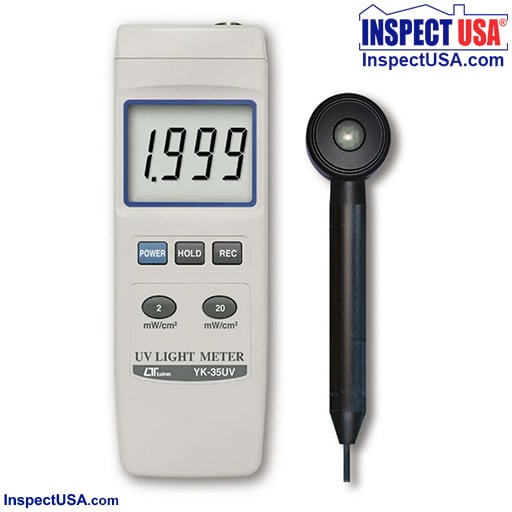

UVA UVB Ultra-Violet Light Meter (YK-35UV) with Remote Probe

Ultra-Violet Light Meter UVA/UVB 290-390nm (YK-35UV) Remote Probe

• Ultra-Violet irradiation measurement for UVA & UVB
• UV detector spectrum from 290 to 390 nm
• Threaded tripod mount
• Fold out easel back for desktop use
• Two ranges : 2 mW/cm², 20 mW/cm²
• Low battery indication
• Separate UV light probe (with 55" coiled cable) permits measurements from any position
• RS-232 data interface
• Data hold feature
• Minimum & maximum data record feature
• Zero adjustment by push button
• DC 9v power adapter input socket.

Specifications:

• Sensor: UV photo diode with cosine correction filter
• Range:
  • Low: 0.001 to 1.999 mW/cm²
  • High: 0.01 to 19.99 mW/cm²
• Resolution:
  • Low: 0.001 mW/cm²
  • High: 0.01 mW/cm²
• Spectrum: 290 to 390nm
• Sampling time: approx 1 second
• Accuracy: within 4% of full scale + 2 digits)
• Storage condition: 14° to 140° F (-10° to 60° C)
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 85% RH non-condensing.
• Over-Input: Display shows "----"
• Power: 9v battery or optional DC Power Supply (Minimum 200mA)
• Power current: approximately 6.0mA DC
• Dimensions:
  • 7.9" x 2.7" x 1.2" (200 x 68 x 30mm)
  • Sensor:
    • Diameter: 1.75"
    • Height: 1.25"
    • Handle: 6.75"
  • Sensor housing (handle): 6.5" x 1.8" x 1.2"
  • Cable Length: 48" (1220mm)
• Weight: approximately 8oz (meter only)
• COO: Taiwan.
• Harmonized code: 9027.80.90.

Supplied With:

• Remote UV sensor probe with 55" coiled cable
• Sensor cover
• Instruction manual
• 1 year limited manufacturer's warranty
