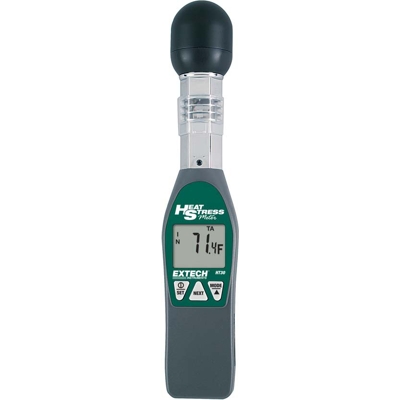

Wet Bulb Globe Temp WBGT Heat Index Monitor (HT30) Black Globe

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Heat Stress Index measures how hot it feels when humidity is combined with temperature, air movement, and radiant heat. Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface.

User settable heat stress index alarm. The HT30 will emit an audible beep when the heat stress index (WBGT) reaches the level previously set by the user. The alarm will continue beep until the measured heat stress index temperature falls below the alarm level set by the user, or the meter is turned off. The setting range is from 68.0 to 99.0°F (20.0 to 37.2°C).

Features:

• Measure Air Temperature (TA) plus Relative Humidity (RH)
• Selectable units of °F and °C
• In/Out Function displays the WGBT value with or without direct sun exposure
• Built-in RS-232 interface with optional Windows compatible software
• Auto power off (can be disabled)
• User settable heat stress index alarm.

Specifications:

• Wet Bulb Globe Temperature (WBGT) 32°F to 122°F (0°C to 50°C)
• WBGT Accuracy Calculated from measured parameters
• TG Black Globe Temperature range 32°F to 176°F (0 to 80°C)
• TG Accuracy Indoor ±4°F (2°C)
• Outdoor ±5.5°F (3°C)
• TA Air Temperature range 32°F to 122°F (0°C to 50°C)
• TA Accuracy ±1.8°F (1°C)
• Relative Humidity (RH) 0 to 100%RH
• RH Accuracy ±3% (at 25°C, 10 to 95%RH)
• Resolution 0.1°F/°C; 0.1%RH
• Operating Temperature 32°F to 122°F (0°C to 50°C)
• Operating Humidity Max. 80% RH
• Power Supply Two AAA batteries
• Battery Life Approx 1000 hours
• Dimensions
  • Meter: 10x1.9x1.1" (254 x 48.7 x 29.4mm)
  • Black Ball: 1.57 Dia., 1.37H (40mm, 35mm)
• Weight 4.8oz (136g)

Supplied with:

• 2 AAA alkaline batteries
• 1 year manufacturer's warranty

Optional Accessories PC software and cable (407752)

Download Users manual (PDF format)
