White 15amp Duplex Receptacle (270W10LW) 110vAC

Name: White 15amp Duplex Receptacle (270W10LW) 110vAC
Brand: Eaton
SKU: 2866
Price: 1.98 USD
Availability: InStock
Rating: 5.00 (111 reviews)

Model #: 270W10LW

UPC: 00032664750830

Condition: New

0 Reviews
Be the first to review this product

Print This Page

Have a question?

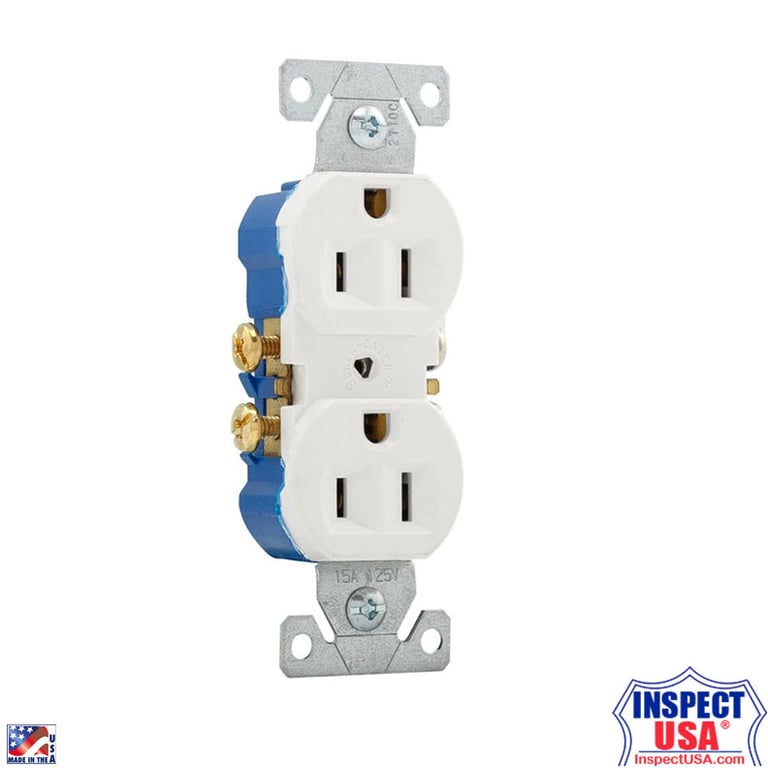

White 15amp Duplex Receptacle (270W10LW) 110vAC

Item may vary slightly from image.

Made in USA

$1.98

Add Qty to Cart:

Product 19 of 21

Category: Electrical Components

White 15amp Residential Grade Duplex Receptacle (270W10LW) 110vAC

The Eaton 270W is a residential grade duplex receptacle rated 15 amps at 125 volts, suitable for everyday commercial and residential wiring applications. Its impact-resistant thermoplastic face and body stand up to daily use, while brass contacts provide reliable electrical connections. The receptacle supports both side wiring and push-in wiring for fast, flexible installation, and its standard NEMA 5-15R configuration accepts common three-prong plugs.

Made in USA.
Residential grade duplex receptacle, 15A, 125V.
NEMA 5-15R straight blade configuration.
Impact-resistant thermoplastic face and body.
Brass contact material for reliable conductivity.
Side and push-in wiring; screw connection type.
Accepts #14 AWG copper (push-in) or #10–14 copper / copper clad aluminum (side wiring).
Flush mounting, two-pole, three-wire grounding.
UL listed, NOM certified, RoHS compliant.
Color: White.
Related GTIN: 00032664761942.
Dimensions: 0.69" W x 1.31" D x 4.19" H.

Specifications

Product Name	Eaton residential grade duplex receptacle
Catalog Number	270W
UPC	032664750830
Device Type	Receptacle, duplex
Device Grade	Residential (standard grade)
Amperage Rating	15A
Voltage Rating	125V
NEMA Configuration	5-15R
Design Type	Straight blade
Number of Poles	Two-pole
Number of Wires	3
Wiring Method	Side and push-in
Connection Type	Screw
Allowable Wire Size	Push-in terminals: #14 AWG copper only; side wiring: #10–14 copper or copper clad aluminum
Torque Rating	14 lbf-in
Contact Material	Brass
Face/Body Material	Impact-resistant thermoplastic
Mounting Method	Flush
Color	White
Application	Commercial / residential
Certifications	UL, NOM, Federal Specification Classification 6233 01
Compliances	RoHS compliant, NAFTA
