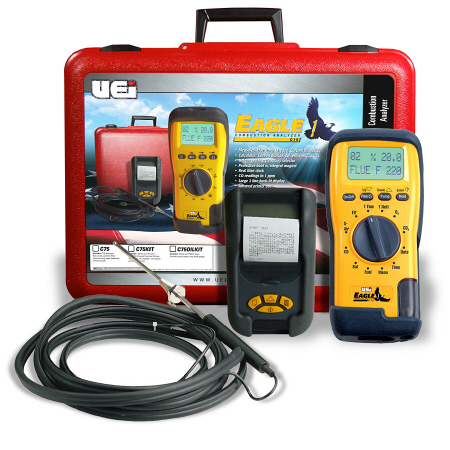

UEI Combustion Analyzer CO2 CO & O2 (C75KIT) w/Printer, Probe & Case

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Features:

• Built in sampling pump with battery saving standby switch
• Calculates CO₂ (Carbon Dioxide), gross/net efficiency, excess air, CO Free Area
• Measures O₂ (Oxygen), flue temperatures, CO (Carbon Monoxide)
• Pre-programmed Fuels: Natural Gas, Light Oil, Propane, Butane and Liquefied Petroleum Gas
• Heavy duty stainless steel probe with depth stop
• Automatic calibration
• Efficiency reading on condensing boilers
• 20 position memory
• Choose combustion parameter with a rotary selector
• Ruggedized boot with an integral magnet
• Infrared printer port
• User Programmable header for printed reports
• Real time clock
• Day, time and date stamp for printed reports
• Large backlit LCD, 2 line display
• Battery level indicator
• Made in UK
• Infrared Printer Features KMIRP2:
  • Compact design with a protective rubber boot with integrated magnet
  • Infrared port, receives readings up to 3' away without losing connection. Allowed 60° angle up to 18" away
  • Compatibility with UEi analyzers and analyzers using HP protocols
  • Self test and battery condition function
  • Detects incorrect or missing information
  • Automatic power down
  • Paper advance
  • Uses 4 x 1.5v alkaline AA batteries
  • Battery life approx. 6000 print line of continuous printing

Specifications:

• Flue temperature range*: 32° to 1112° F (0° to 600° C)
• Net DELTA-T temperature range**: 32° to 1112° F (0° to 600° C)
• Flue temperature & DELTA-T accuracy: ±0.3% reading + 5° F (+ 3° C)
• Inlet temperature range (ambient): 32 to 112° F (0 to 50° C)
• Ambient temperature accuracy: ±0.3% reading + 1° F (+ 1° C)
• Temperature resolution: 1° F/C
• Oxygen O₂ range*: 0 to 21%
• Oxygen O₂ resolution: ±0.2%
• Oxygen O₂ accuracy: 0.1%
• Carbon Monoxide CO range*: 0 to 1000ppm
• Carbon Monoxide CO resolution: 1ppm
• Carbon Monoxide CO accuracy: ±10ppm <100ppm, ±5% of reading
• Carbon Dioxide CO₂ range**: 0 to 30%
• Carbon Dioxide CO₂ resolution: 1.0
• Carbon Dioxide CO₂ accuracy: ±0.3% reading
• Efficiency range^**: 0 to 99.9%
• Efficiency resolution: 0.1%
• Efficiency accuracy: ±1.0% reading
• Excess Air range^**: 0 to 250%
• Excess Air resolution: 0.1%
• Excess Air accuracy: ±0.2%
• Dimensions:
  • Handset: 7.9" x 1.8" x 3.5"
  • Probe: Length 11.8" x 0.25" diameter with 8" long stainless steel shaft
  • Neoprene Hose: 9' with 'K' type thermocouple
• Power: (4) "AA" (designed for both alkaline or rechargeable Nickel Metal Hydride (NiMH) batteries)
• Battery life: ~12 hours using (4) alkaline batteries
• AC adapter:
  • Input: AC 110v / 220v nominal
  • Output: DC 6v, 500mA

* calculated

** measured

Supplied with:

• Depth stop cone
• (4) "AA" alkaline batteries
• Combustion efficiency calculation charts
• Protective Ruggedized Boot with integral magnet
• 9' Neoprene hose with incorporated "k" type thermocouple end
• Infrared printer (KMIRP)
• AC adapter (AACA4)
• Particle filter (17631)
• Soft Carrying Case with protective foam interior (AC75)
• (1) roll of thermal printer paper (16646)
• Quick start manual & owners guide
• Three year limited warranty (Two year limited warranty on sensors)

Optional accessories & replacement parts:

• Smoke pump test kit (SPT1)
