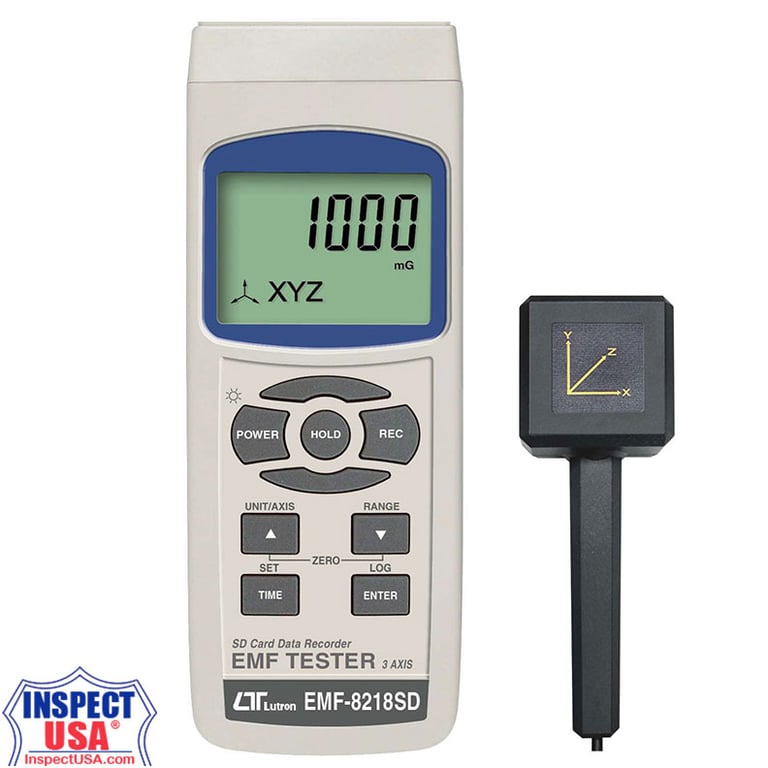

Lutron Multi-Field EMF (EMF-8218SD) RF & LF Electromagnetic Field Meter
Achieve Precision and Comprehensive Data Logging with a Professional EMF Tester
The EMF-8218SD Electromagnetic Field (EMF) Tester provides accurate and reliable measurements of electromagnetic fields in three axes (X, Y, Z), with real-time data logging capabilities, making it an essential tool for various industrial and environmental applications.
Exceptional Features of the EMF-8218SD:
1. Three-Axis Measurement: Measures electromagnetic fields in X, Y, and Z directions, providing comprehensive analysis of EMF levels.
2. Real-Time Data Logger: Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software.
3. High Accuracy and Resolution: Features high accuracy and resolution with measurement ranges of 20/200/2000 micro Tesla and 200/2000/20000 milli-Gauss, ensuring precise and repeatable measurements.
4. User-Friendly Design: Equipped with a large LCD display for easy reading, data hold function, memory recall for maximum and minimum values, and auto power off to save battery life.
5. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.
Technical Specifications:
- Display:
- Type: Large LCD
- Size: 52 mm x 30 mm
- Measurement Functions:
- Measurement Range:
- 20/200/2000 micro Tesla
- 200/2000/20000 milli-Gauss
- Resolution:
- 20 μTesla (0.01), 200 μTesla (0.1), 2000 μTesla (1)
- 200 mGauss (0.1), 2000 mGauss (1), 20000 mGauss (10)
- Accuracy:
- ±(4% FS + 3 digits) @ 20 μTesla range, 200 mGauss range
- ±(5% FS + 3 digits) @ 200 μTesla range, 2000 mGauss range
- ±(10% FS + 3 digits) @ 2000 μTesla range, 20000 mGauss range
- Measurement Bandwidth: 30 Hz to 300 Hz
- Data Logger:
- Automatic: 2 to 3600 seconds
- Manual: Push the data logger button once to save data
- SD Card Capacity: 1 GB to 16 GB
- Power Supply:
- 1.5V batteries (UM3, AA) x 6 PCs or DC 9V adapter (optional)
- Power Consumption:
- Normal operation (without SD card save data): Approx. DC 24 mA
- Without backlight: Approx. DC 18 mA
- When SD card saving data: Approx. DC 50 mA
- Operating Environment:
- Temperature: 0 to 50℃
- Humidity: Less than 85% RH
- Dimensions: 178 x 68 x 45 mm (7.0 x 2.7 x 1.8 inches)
- Weight: 480 g (1.05 lb, including meter and probe)
Accessories Included:
- Instruction Manual: 1 PC
- Hard Carrying Case (CA-06): 1 PC
Optional Accessories:
- SD Card (4 GB)
- USB Cable (USB-01)
- RS232 Cable (UPCB-02)
- Data Acquisition Software (SW-U801-WIN, SW-E802)
- AC to DC 9V Adapter
Advanced Features:
- Microcomputer Circuit: Ensures high accuracy and reliability with intelligent functions.
- Auto/Manual Data Logging: Enhances data management and analysis capabilities.
- Three-Axis Measurement: Provides comprehensive EMF analysis in X, Y, and Z directions.
- RS232/USB Interface: Enhances data management and integration with computer systems.
- Heavy Duty and Compact Housing: Durable and easy to use in the field.
- Memory Recall: Recalls maximum and minimum values for easy reference.
- Data Hold Function: Freezes the display reading for convenient recording.
- Auto Power Off: Saves battery life by shutting off the meter automatically.
