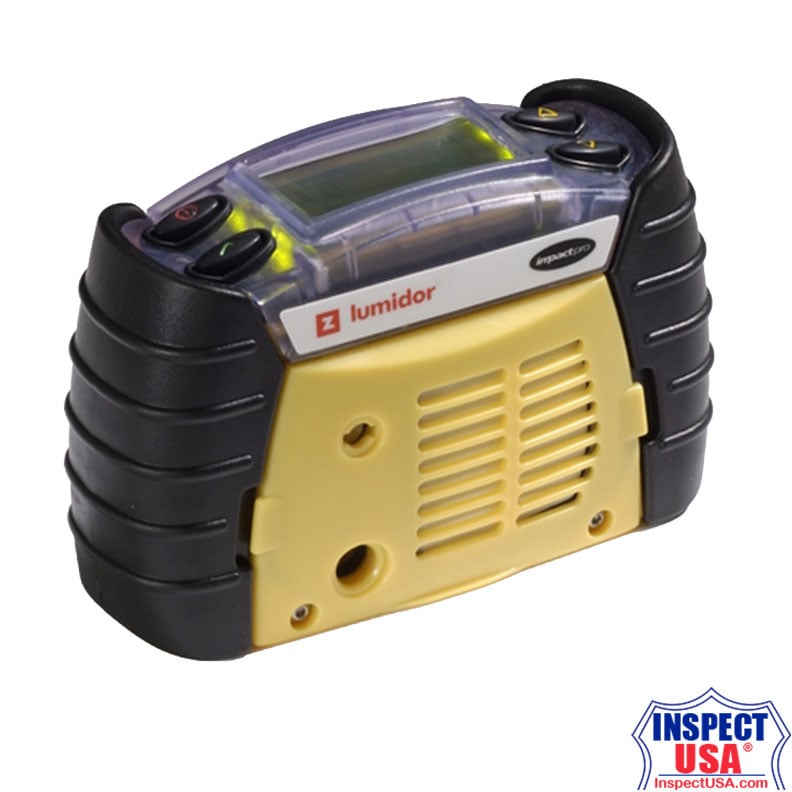

IMPACT Personal Gas Monitor CO H2S O2 LEL (IMPACTPRO) with Pump
The Impact 4 Gas Monitor is a portable multi-gas monitor that detects and displays four gases with the optional sensor cartridge: oxygen, carbon monoxide, hydrogen sulfide, and flammable gases (not included).
The Impact uses patented Reflex™ technology to ensure safe, accurate and reliable measurements are always made. Each Honeywell Lumidor Impact multi-gas monitor is supplied with a quick start guide, multi-lingual operating instructions on CD, dry cell battery holders and batteries, belt clip, and flow adaptor. Units are fully configured and ready to accept disposable cartridges.
- Dust, water and weatherproof.
- Optional pre-calibrated plug-in sensor cartridge can be changed by the user in minutes.
- Three levels of instantaneous alarm, plus time weighted average alarms on toxic gases.
- Flow hood included.
- Multimedia CD with manual.
- Windows-based PC software and interface capabilities for configuring the monitor, downloading gas and event log data, and downloading calibration history records.
- Constructed from high-impact ABS plastic, anti-static to EN50014, with belt clip.
Specifications
| Gas |
Range |
Response |
Accuracy |
Alarm 1 |
Alarm 2 |
Alarm 3 |
STEL |
TWA |
| Flammable gas |
0-100% LEL |
< 10 sec |
±3% LEL |
10% |
20% |
50% |
n/a |
n/a |
| Oxygen |
0-25% v/v |
< 10 sec |
±0.3% v/v |
23.5 |
19.5 |
18.5 |
n/a |
n/a |
| Carbon monoxide |
0-500 ppm |
< 30 sec |
±12.5 ppm |
35 |
50 |
100 |
100 |
35 |
| Hydrogen sulfide |
0-50 ppm |
< 30 sec |
±2.5 ppm |
10 |
15 |
25 |
15 |
10 |
Common flammable gases include methane, propane, butane, pentane, hydrogen, methanol, octane, and ethane.
| IP Rating |
Instrument IP65 (NEMA 4X), cartridge IP54 (NEMA 4) |
| Display |
Backlit LCD |
| Operating Temperature |
-4° to 122°F (-20° to 50°C) |
| Storage Temperature |
-40° to 176°F (-40° to 80°C) |
| Humidity |
Continuous 20 to 90% RH; intermittent 0 to 99% (non-condensing) |
| Audible Alarm |
Periodic confidence bleep with differing dual tone for fault, gas alarm and warning, rated at 85 dBA at 1 meter (90 dBA at 1 foot) |
| Visual Alarm |
Green confidence flash with rapid red flashing for fault, gas alarm and warning indication |
| Battery |
Ni-MH rechargeable: operating life > 10 hours (7 hour charging time). Alkaline disposable: operating life > 17 hours. |
| |
|
| Approvals |
North America Class 1 Div 1 Group A, B, C, D (UL); Ex II 2G, EEx ia d IIC T4 safety requirements |
Dimensions
1.9" x 3.3" x 5.3"
Weight
18 oz including rechargeable batteries.

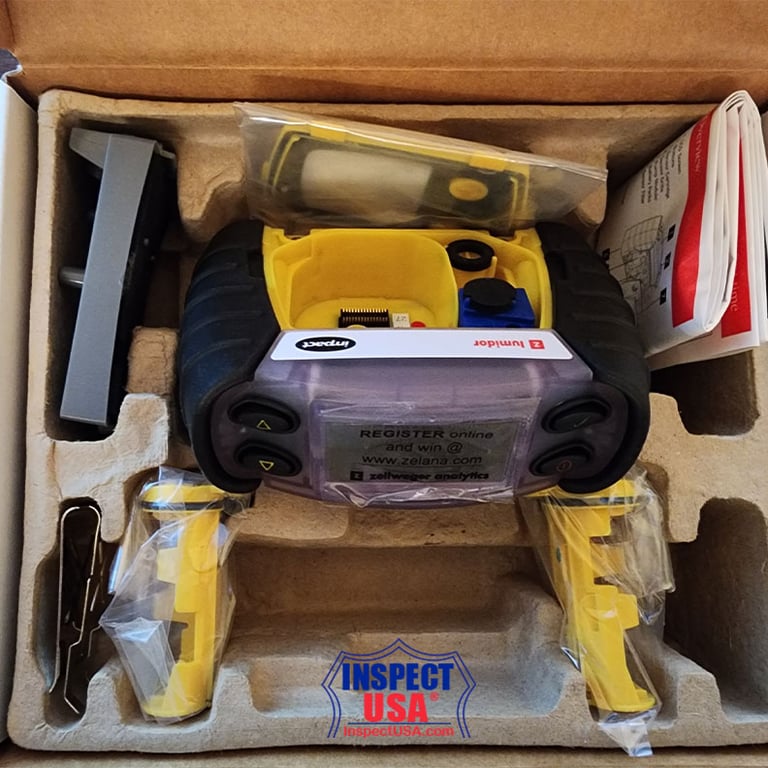

Accessories Included
- Quick start guide.
- Multi-lingual operating instructions on CD.
- Dry cell battery holders.
- Belt clip.
- Flow adapter.
