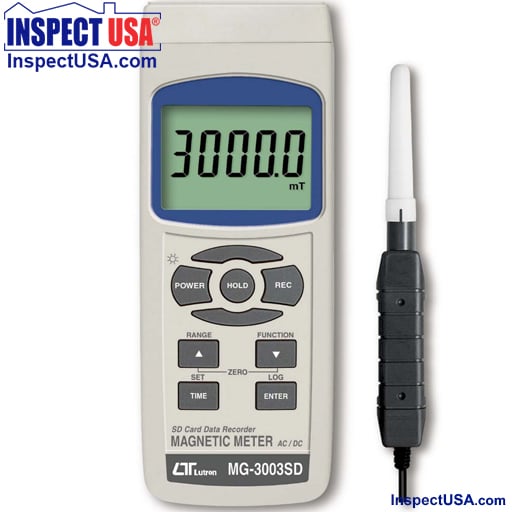

ACDC Magnetic Meter (MG-3003SD) with Data Logging

Lutron AC/DC Magnetic Meter with high accuracy and a wide range, for collecting professional magnetic measurements.

• Measurement units: G (Gauss), mT (milliTesla).
• DC magnetic range: 300.00 mT, 3000.0 mT.
• AC magnetic range: 150.00 mT, 1500.0 mT.
• DC polarity: North /South (north/south pole).
• Zero adjustment.
• Remote sensor probe helps make it easier to take measurements.
• Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 second to 9 hours.
• Innovation and easy operation, computer is not needed to setup extra software, after datalogger has been enabled and recorded readings, just remove the SD card from the meter and plug into the SD card slot in the computer, it can download all of the measured values with the time information (year/month/date/hour/minute/second) to an Excel spreadsheet directly, then user can make further data manipulation or graphic analysis.
• SD card capacity: 1 GB to 16 GB.
• LCD with green backlight for easy reading.
• Auto power off (can be disabled)
• Data hold, record max. and min. reading.
• RS232/USB PC COMPUTER interface.
• Wide applications: PCB industries, water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control & water conditioning.

SPECIFICATIONS

• Circuit: Custom LSI single-chip microprocessor
• Display size: 52 mm x 38 mm. Dot matrix LCD with backlight.
• DC Measurement range:
  • milliTesla
    • Range 1 300.00 mT x 0.01 mT
    • Range 2 3,000.0 mT x 0.1 mT
  • Gauss
    • Range 1 3,000.0 G x 0.1
    • Range 2 30,000 G x 1 G
• AC Measurement Range (frequency response 50/ 60 Hz)
  • milliTesla
    • Range 1 150.00 mT x 0.01 mT
    • Range 2 1,500.0 mT x 0.1 mT
  • Gauss
    • Range 1 1,500.0 G x 0.1 G
    • Range 2 15,000 G x 1 G
• Accuracy (at 23 ± 5 degrees Celsius) is within:
  • DC ± ( 5 % of reading + 10 digits)
  • AC ± ( 5 % of reading + 20 digits)
• Sensor: Hall sensor with Automatic Temperature Compensation
• Field Direction Uniaxial
• Datalogger Sampling Time Setting range
  • Auto: 1 sec to 8 hour 59 min. 59 sec.
    @ Sampling time can set to 1 second, but memory data may loss
  • Manual Push the data logger button once will save data one time.
    @ Set the sampling time to 0 second.
    @ Manual mode, can also select the 1 to 99 position ( Location ) no.
• Memory Card SD memory card. 1 GB to 16 GB
• Advanced setting
  • SD memory card Format
  • Set clock time ( Year/Month/Date, Hour/Minute/ Second )
  • Set sampling time
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Decimal point of SD card setting
  • Unit setting
• Data Hold Freeze the display reading
• Memory Recall Maximum & Minimum value
• Sampling Time of Display Approx. 1 second
• Data Output RS 232/USB PC computer interface
  • Connect the optional RS232 cable
    UPCB-02 will get the RS232 plug
  • Connect the optional USB cable
    USB-01 will get the USB plug
• Operating Temperature: 32° F to 122° F
  NOTE most batteries are not rated for below -4° F or above 125° F
• Operating Humidity: 0 to 85% RH
• Power Supply:
  • (6) AAA 1.5v alkaline batteries or 1.2v NiMH
  • DC 9V adapter input. (AC/DC power adapter is optional)
• Power Current:
  • Normal operation (w/o SD card save data and LCD Backlight is OFF): Approx. DC 14 mA
  • When SD card save the data and LCD Backlight is OFF): Approx. DC 37 mA
  • If LCD backlight on, the power consumption will increase approx. 12 mA
• Weight 489 g/1.08 LB
• Dimensions:
• Meter 7.0 x 2.7 x 1.9 inches (177 x 68 x 45 mm)
• Probe 7.8 x 1.0 x 0.7 inches (198 x 25 x 19 mm)

Supplied with:

• Instruction manual
• Magnetic Probe
• Hard carrying case (CA-06)

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• Data capture software (Windows OS) SW-U801.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.

Download Users Manual (PDF format)

Link to the technical data sheet that is provided for Lutron MG-3003SD
