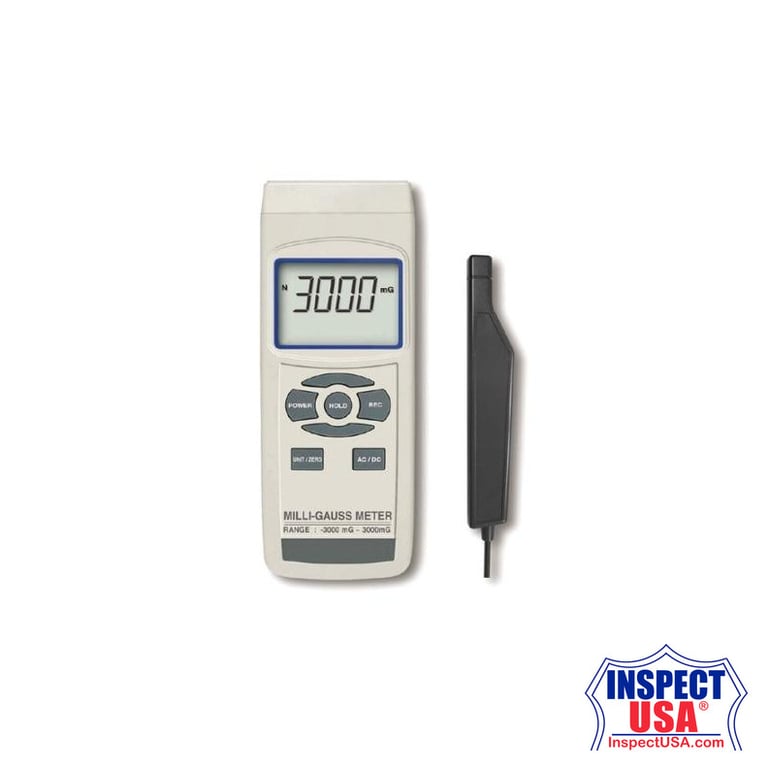

Lutron Precision AC / DC Milli Gauss Meter (GU-3001) with Case

Lutron High Precision AC / DC Milli Gauss Meter (GU-3001) with Case

Utilizing a proprietary sensor, which has better performance and higher accuracy than the conventional Hall Element sensor.

• Detects DC and AC magnetic fields.
• Measures in milliGauss (mG) or microTesla (µT).
• North pole / South pole indicator.
• High precision magnetometer can measure the absolute environment of the Earth's magnetic field for reference
• Zero adjustment button for relative measurements.
• Data hold will freeze the existing display reading.
• Memory recall will record maximum and minimum reading.
• Easy to read LCD with backlight.
• Auto or manual power off.
• Measuring Range:
  • -3000 to 3000mG.
  • -300 to 300µT.
• Resolution:
  • 0.1mG: -199.9 to 199.9mG.
  • 1mG: within 200 or within -200mG.
  • 0.01µT: -19.9 to 19.9µT.
  • 0.1µT: within 20 or within -20µT.
• Accuracy is within: (2% + 2mG).
• AC/DC Frequency Response: 40 Hz to 10 KHz.
• Field Direction: Uniaxial.
• Sampling Time: Approximately 1 second.
• Data Output: RS 232 or USB.
• Power Supply: (6) AAA 1.5v alkaline batteries or equivalent.

Optional accessories:

• Data acquisition software, SW-U801-WIN.
• USB cable, USB-01.
