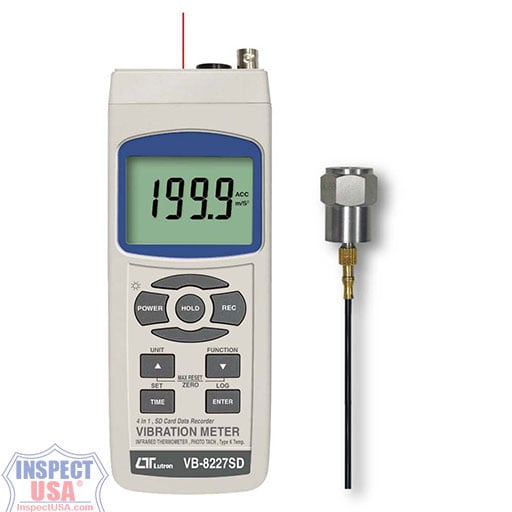

Lutron Data Logging Vibration Meter (VB-8227SD) with Sensor Probe & Case
The VB-8227SD Vibration Meter offers accurate and reliable measurements for vibration, photo tachometer, IR temperature, and Type K temperature, making it an essential tool for various industrial applications.
1. Multi-Functionality: Combines four functions in one meter: vibration measurement, photo tachometer, IR thermometer, and Type K thermometer, providing comprehensive data for industrial monitoring and maintenance.
2. Real-Time Data Logger: Records data in real-time onto an SD card (1 GB to 16 GB) for easy data transfer to a computer for further analysis. Features built-in clock and calendar for accurate timestamping.
3. Wide Frequency Range: Measures vibration across a frequency range of 10 Hz to 1 kHz, with sensitivity meeting ISO 2954 standards for reliable results.
4. High Accuracy and Precision: Utilizes a microprocessor circuit for high accuracy, with features like RMS, Peak, and Max Hold measurements for detailed analysis.
5. User-Friendly Interface: Includes a large LCD with green backlight for easy reading, data hold function, and memory recall for maximum and minimum values.
Specifications:
- Display:
- LCD Size: 52 mm x 38 mm
- Backlight: Green backlight (ON/OFF)
- Measurement Functions:
- Vibration (Acceleration, Velocity):
- Acceleration (RMS, Peak, Max Hold):
- Unit: m/s², G, ft/s²
- Range: 0.5 to 199.9 m/s², 0.05 to 20.39 G, 2 to 656 ft/s²
- Resolution: 0.1 m/s², 0.01 G, 1 ft/s²
- Accuracy: ±(5% + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃
- Velocity (RMS, Peak, Max Hold):
- Unit: mm/s, cm/s, inch/s
- Range: 0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 inch/s
- Resolution: 0.1 mm/s, 0.01 cm/s, 0.01 inch/s
- Accuracy: ±(5% + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃
- Type K Thermometer:
- Range: -50.0 to 1300.0℃ (-58.0 to 2372.0℉)
- Resolution: 0.1℃/℉
- Accuracy: ±(0.4% + 0.5℃), ±(0.4% + 1℉)
- IR Thermometer:
- Emissivity: 0.95 fixed value
- Spectral Response: 6 to 14 µm
- Field of View: D/S = Approx. 6:1 ratio (D = distance, S = spot)
- Range: -30 to 305℃ (-22 to 581℉)
- Resolution: 0.1℃/℉
- Accuracy: ±3% of reading or ±3℃/℉
- Photo Tachometer:
- Measurement Range: 5 to 99,999 RPM
- Resolution: 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)
- Accuracy: ±(0.05% + 1 digit)
- Detecting Distance: 50 to 150 mm (2 to 6 inches), max. 300 mm (12 inches)
- Power Supply:
- 6 x 1.5V AA batteries (Alkaline or heavy-duty type)
- DC 9V adapter (optional)
- Power Consumption:
- Normal Operation: Approx. DC 15 mA (without SD card save, LCD backlight off)
- SD Card Save: Approx. DC 36 mA (LCD backlight off)
- LCD Backlight On: Additional approx. 5 mA
- Operating Environment:
- Temperature: 0 to 50℃
- Humidity: Less than 85% RH
- Dimensions:
- Meter: 182 x 73 x 47.5 mm
- Vibration Sensor Probe: 16 mm Dia. x 37 mm, Cable Length: 1.2 meters
- Weight:
- Meter: 360 g (0.79 lb)
- Probe with Cable and Magnetic Base: 99 g (0.22 lb)
Accessories Included:
- Instruction Manual: 1 PC
- Hard Carrying Case (CA-06): 1 PC
- Vibration Sensor with Cable: 1 PC
- Magnetic Base: 1 PC
- Photo Tachometer Reflecting Tape
Optional Accessories:
- SD Card (4 GB)
- AC to DC 9V Adapter
- USB Cable (USB-01)
- RS232 Cable (UPCB-02)
- Data Acquisition Software (SW-U801-WIN)
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and special functions.
- Data Hold Function: Freezes the desired value on the display.
- Maximum/Minimum Recall: Records and recalls the maximum and minimum readings.
- Auto Power Off: Saves battery life by turning off automatically or manually by push button.
- RS232/USB Interface: Provides data output for integration with PC applications.
