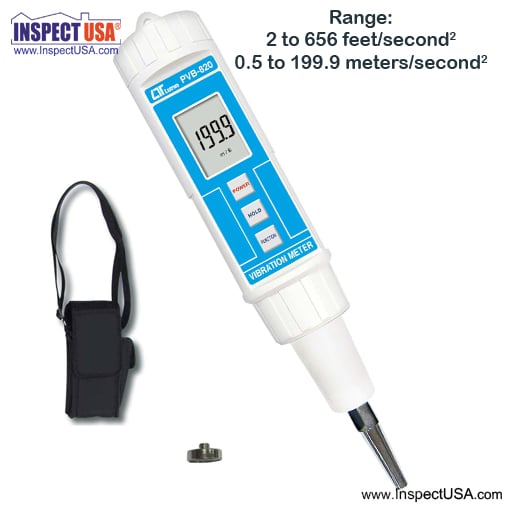

Vibration Meter (PVB-820) Pen-Type with Magnetic Mount

Lutron Pen Type Digital Vibration Meter. Measures Velocity and Acceleration.

• Measures in m/s2,g or ft/s2.
• Acceleration (RMS) range: 2 to 656 feet/second2 (0.5 to 199.9 meters/second2).
• Velocity (RMS) range: 0.02 to 7.87 inches/second (0.5 to 199.9 mm/second).
• Accuracy is within 95% of the reading, plus or minus 2 digits. @ 160 Hz, 80 Hz.
• Calibration Point: 50 m/s2 (160 Hz).
• Pen type digital vibration meter, vibration sensor is built in, all in one.
• Acceleration, Velocity measurement, RMS measurement value.
• Metric & Imperial display unit
• Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
• Microcomputer circuit, intelligent function, high accuracy.
• LCD display, easy read out.
• Built-in low battery indicator.
• Heavy duty & compact housing case.
• Power: (4) AAA alkaline or equivalent batteries (not included).
• IP65 water resistance protection.
• Compact size, light weight.
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Dimensions: 6.9 x 1.6 x 1.3 inches (175 x 40 x 32 mm).
• Weight: approximately 12 ounces.

Supplied with:

• Meter body.
• Vibration sensor tip.
• Magnetic base.
• Carry case

Download Users Manual (PDF format)

Link to the technical data sheet that is provided for Lutron PVB-820

Applications for industrial vibration monitoring:
All industrial machinery vibrates. The level of vibration is a useful guide to monitoring machine condition.
Poor balance, misalignment & looseness of the structure may cause the vibration level to increase, which can be an advanced notification that maintenance is needed soon.
