Vibration Meter 3-Axis & 3-Channel (BVB-8217SD) Data Logging

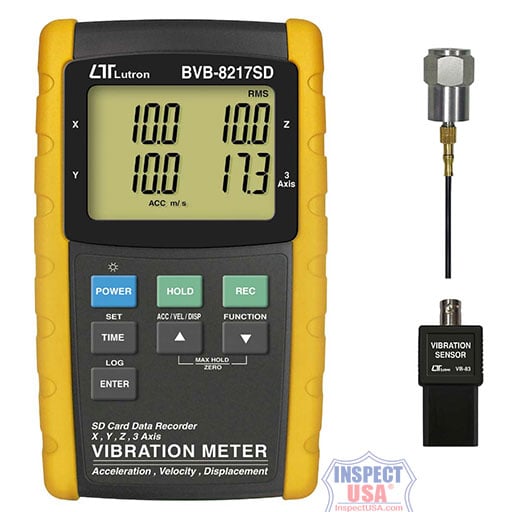

3-Axis & 3-Channel Lutron Data Logging Vibration Meter (BVB-8217SD) with Sensor Probe & Case

The BVB-8217SD 3-Axis Vibration Meter provides accurate and reliable vibration measurements with real-time data logging to an SD card, making it an essential tool for various industrial applications.

• 3-Axis Measurement: Capable of measuring X, Y, and Z axis vibrations simultaneously, providing a comprehensive assessment of vibration levels.
• Real-Time Data Logging: Saves measurement data along with time information (year, month, date, hour, minute, second) into an SD memory card, which can be easily downloaded to Excel for further data analysis without the need for extra software.
• Multi-Function Capability: Measures acceleration, velocity, and displacement, offering RMS, peak, and max hold values for comprehensive vibration assessment.
• Large Backlit Display: Features a large LCD with green backlight for easy readability, displaying multiple measurement parameters simultaneously.
• Advanced Connectivity: Equipped with RS232/USB computer interface for data output, compatible with optional data acquisition software for enhanced analysis and reporting.

Specifications:

• Display: 82 mm x 61 mm large LCD.
• Backlight: Green.
• Acceleration:
  • Range: 0.5 to 199.9 m/s².
  • Resolution: 0.1 m/s².
  • Accuracy: ±(5% + 5 digits) reading @ 160 Hz, 80 Hz, 23 ± 5℃.
  • Units: m/s², g, ft/s².
• Velocity:
  • Range: 0.5 to 199.9 mm/s.
  • Resolution: 0.1 mm/s.
  • Accuracy: ±(5% + 5 digits) reading @ 160 Hz, 80 Hz, 23 ± 5℃.
  • Units: mm/s, cm/s, inch/s.
• Displacement:
  • Range: 0.05 to 1.999 mm.
  • Resolution: 0.001 mm.
  • Accuracy: ±(5% + 5 digits) reading @ 160 Hz, 80 Hz, 23 ± 5℃.
  • Units: mm, inch
• Frequency Range: - 10 Hz to 1 kHz (ISO 2954 compliance).
• Calibration Points:
• Velocity: 50 mm/s at 160 Hz.
• Acceleration: 50 m/s² at 160 Hz.
• Displacement: 0.141 mm at 160 Hz.
• Data Logging: - Interval: 1 second to 3600 seconds (auto).
• Manual logging available.
• SD card capacity: 1 GB to 16 GB (optional).
• Power: 8 x 1.5V AA (UM3) batteries or DC 9V adapter (optional) AP-9V110.
• Dimensions: 203 x 76 x 38 mm.
• Weight: 515 g (1.13 lb). - Probe with magnetic base: 99 g (0.22 lb).

Advanced Features:

• Microprocessor Circuit: Ensures high accuracy and reliability with special functions and features.
• Auto Power Off: Saves battery life with automatic shut off.
• Data Hold and Memory Recall: Holds and recalls maximum and minimum readings for comprehensive data analysis.

Accessories Included:

• Instruction Manual:
• (1) VB-83 Vibration Sensor with Cable.
• Magnetic Base.
• Hard Plastic Carrying Case.

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
• Data Acquisition Software for Windows SW-U801-WIN.
• USB Data Acquisition Cable with Driver USB-01.
• Vibration Sensor: VB-83.
• Pin Type Vibration Sensor: VB-84.
