Lutron BVB-8208SD 4-Channel Vibration Spectrum Analyzer with SD Card Data Recording

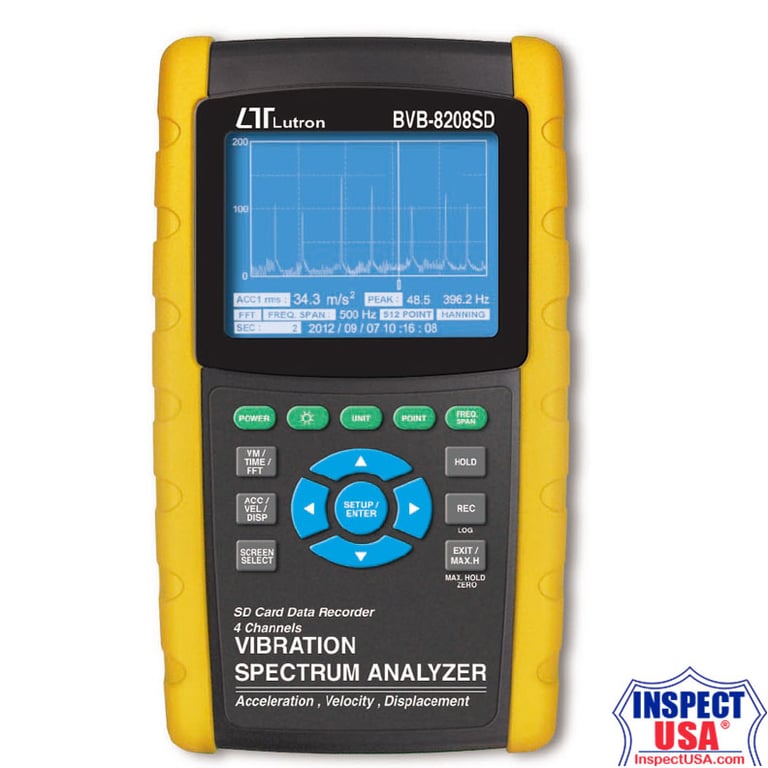

The Lutron BVB-8208SD is a hand-held vibration spectrum analyzer that works two ways. In vibration meter mode it accepts four measurement channels and shows acceleration, velocity and displacement for all four on a single screen at once. In FFT analyzer mode it performs real-time analysis to 10 kHz, displaying the time waveform and the frequency spectrum with up to 1,024 spectral lines. Waveform data records to an SD memory card in WAVE format and screens save as BMP images, so results transfer straight to a computer for further analysis. A 320 x 240 pixel graphic LCD with back light makes the spectrum easy to read in the field.

• Vibration meter mode with four vibration measurement input channels. One screen displays the acceleration, velocity and displacement values for all four channels simultaneously.
• FFT analyzer mode with 10 kHz real-time analysis frequency.
• Time waveform display and spectrum display with up to 1,024 spectral lines.
• Vibration waveform data recording. Data is stored in WAVE file format on the SD memory card.
• Waveforms can be saved as BMP image files for reporting and further analysis.
• Built-in clock and calendar. Real time information — year, month, date, hour, minute and second — is saved to the SD memory card with the data.
• Sampling time is settable from 1 to 3,600 seconds.
• Data files download directly into Excel; no extra software is required.
• Max hold, peak value, data hold, and maximum/minimum functions.
• 320 x 240 pixel graphic LCD with back light for easy reading.
• Accepts SD memory cards from 1 GB to 16 GB.
• RS-232/USB computer interface.
• Powered by eight 1.5V (UM-3/AA) alkaline batteries or a DC 9V adapter.
