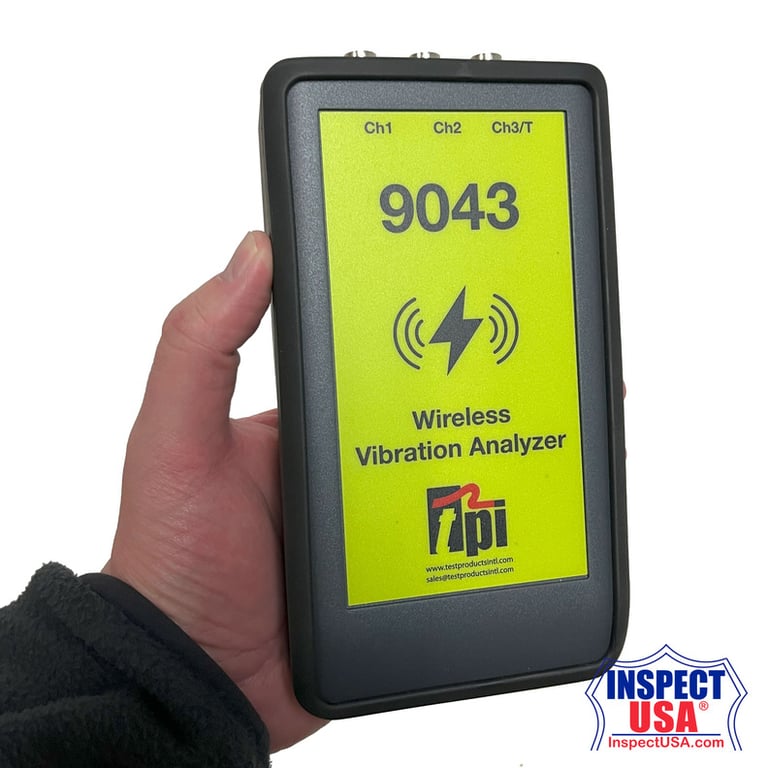

TPI ULTRA III 3 Channel Vibration Analyzer/2 Plane Balancer (9043K2)

TPI ULTRA III 3 Channel Vibration Analyzer/2 Plane Balancer (9043K2)

9043 Smart Wireless Three Channel Vibration & Bearing Wear Analyzer & Data Collector.

Works with the FREE, subscription FREE Ultra III Android Tablet app

The 9043 is a 3-channel vibration analyzer and data collector with 2 plane balancing capability. It features true simultaneous 3 channel capture for versatility, 24-bit A/D converter for high resolution, and wireless communication to an Android tablet running the TPI Ultra III app.

This configuration (9043K2) is: Same as 9043K1 with A9091 C-Trend II Software and activation key.

• Wireless or USB-C Charging.
• Wireless communication to Android Tablet allowing readings to be viewed from a safe distance with analyzer behind safety barrier.
• True simultaneous 3 channel capture.
• Standard BNC connectors.
• Rugged design – IP67 rating.
• Compatible with Triaxial Accelerometer.
• Compatible with Proximity Probes.
• Data transfer by USB-C where Bluetooth is not permitted.
• Supplied in protective, magnetic, rubber boot for hands free use.
• 24 bit A/D Converter.
• DC to 30kHz Frequency Range.
• 100 to 51,200 Line Resolution.
• 108dB Dynamic Range.
