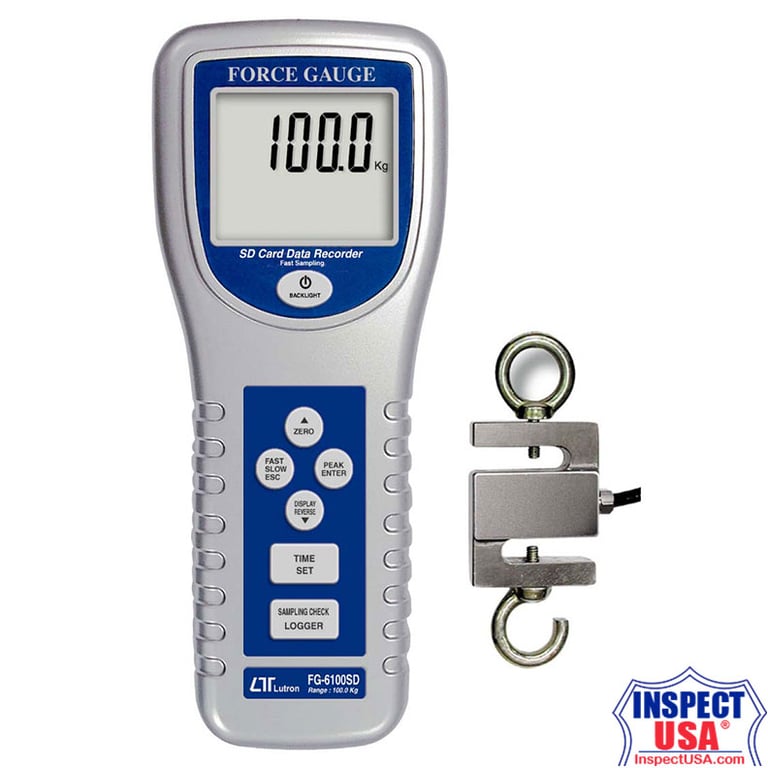

Lutron Force Gauge Tension & Compression 100Kg (FG-6100SD) DataLogging
The FG-6100SD Force Gauge provides accurate and reliable force measurements with real-time data logging, making it an essential tool for various industrial applications.
1. Real-Time Data Logging: Equipped with an SD memory card data logger that records real-time data along with time information, enabling easy data download and analysis directly in Excel.
2. Dual Recording Modes: Offers both normal and peak hold recording modes. Normal mode allows sampling times from 1 second to 8 hours 59 minutes 59 seconds, while peak hold mode offers high-speed sampling from 10 ms to 500 ms.
3. High Capacity and Accuracy: Measures forces up to 100 kg with high resolution and accuracy, supporting both tension and compression measurements.
4. User-Friendly Interface: Features a large LCD with backlight for easy reading, unit selection (Kg, lb, Newton), zero/tare control, and selectable display direction.
5. Advanced Connectivity: Equipped with RS232/USB computer interface for data output and optional data acquisition software for enhanced data management.
Specifications:
- Display:
- LCD (Liquid Crystal Display)
- 5 digits, 16 mm (0.63") digit size
- Backlight: Yes
- Display Direction: Positive or reverse, selectable
- Measurement Range:
- Force: 100 kg / 220.5 lb / 980.6 Newton
- Resolution:
- Force: 0.02 kg / 0.02 lb / 0.2 Newton
- Accuracy: ±(0.5% + 0.1 kg) within 23 ± 5℃
- Update Time:
- Fast: Approx. 0.2 second
- Slow: Approx. 0.6 second
- Recording Modes:
- Normal Mode: Sampling time from 1 second to 8 hours 59 minutes 59 seconds
- Peak Hold Mode: Sampling time from 10 ms to 500 ms
- Memory Capacity:
- Normal Mode: 1 GB to 16 GB SD card
- Peak Hold Mode: Up to 1000 data points
- Data Output: RS232/USB PC computer interface
- Power Supply:
- 6 x 1.5V AA/UM-3 alkaline batteries
- DC 9V adapter
- Power Consumption:
- Normal operation (without SD card and LCD backlight off): Approx. DC 7 mA
- With SD card and LCD backlight off: Approx. DC 38 mA
- Additional 3 mA with LCD backlight on
- Operating Environment:
- Temperature: 0 to 50℃
- Humidity: Less than 80% RH
- Dimensions:
- Main Instrument: 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inches)
- Sensor with Two Hooks: 162 x 51 x 22 mm (6.4 x 2.0 x 0.9 inches)
- Sensor Cable Length: 2 meters
- Weight:
- Main Instrument: 288 g (0.63 lb)
- Sensor: 635 g (1.40 lb)
Accessories Included:
- Operating Manual: 1 PC
- 100 kg Sensor with Two Hooks and 2 Meter Cable: 1 PC
- Carrying Case: 1 PC
Optional Accessories:
- SD Memory Card (4 GB)
- RS232 Cable (UPCB-02)
- USB Cable (USB-01)
- Data Logging Software (SW-U801-WIN)
- Excel Data Acquisition Software (SW-E802)
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and special functions.
- Zero/Tare Control: Allows full capacity zero control capability.
- Overload Protection: Ensures safety with a maximum capacity of 150 kg.
- Easy Data Download: No need for extra software; simply plug the SD card into a computer to download measured values with time information directly into Excel.
