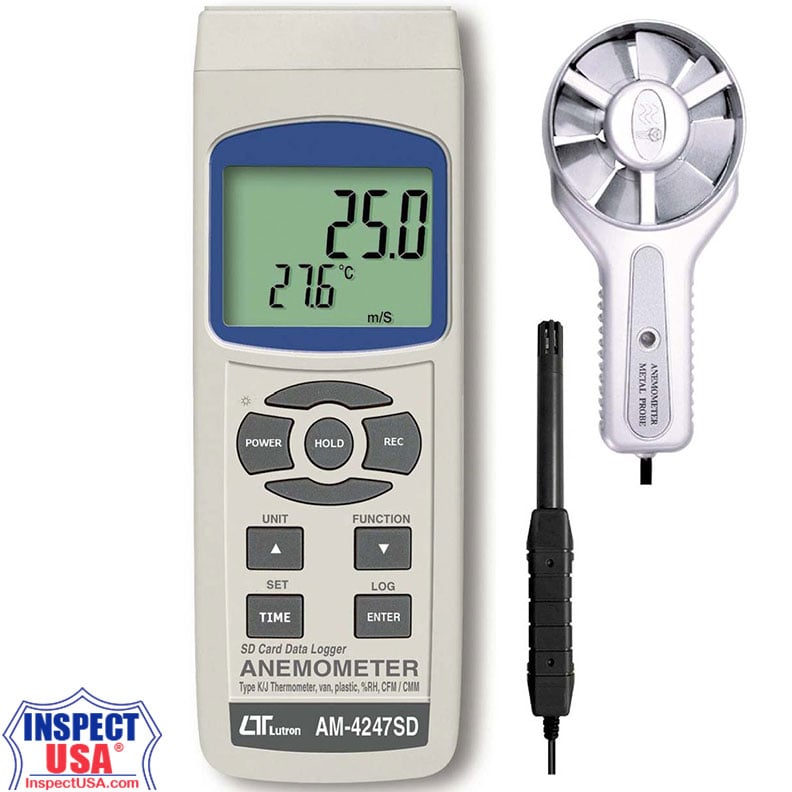

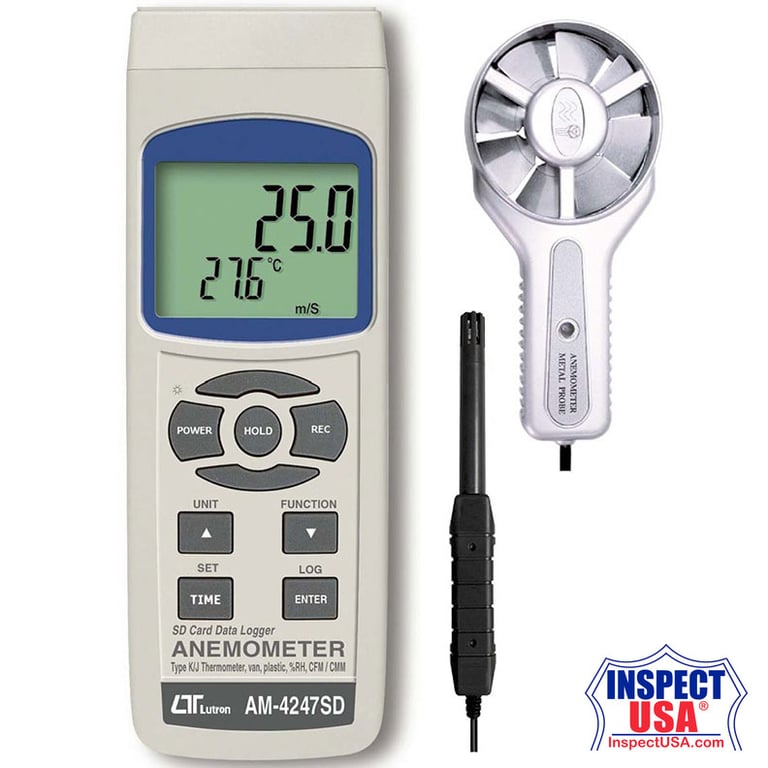

Metal Vane Lutron Anemometer (AM-4247SD) with Humidity Probe

Lutron Data Logging Metal Vane Anemometer (AM-4247SD) with Remote Metal Vane & Remote Humidity Probe.

• SD Card real-time data recorder
• Measures air velocity, air flow, humidity, dew point, and Type K/J temperature
• ISO-9001, CE, IEC1010 certified

Probes

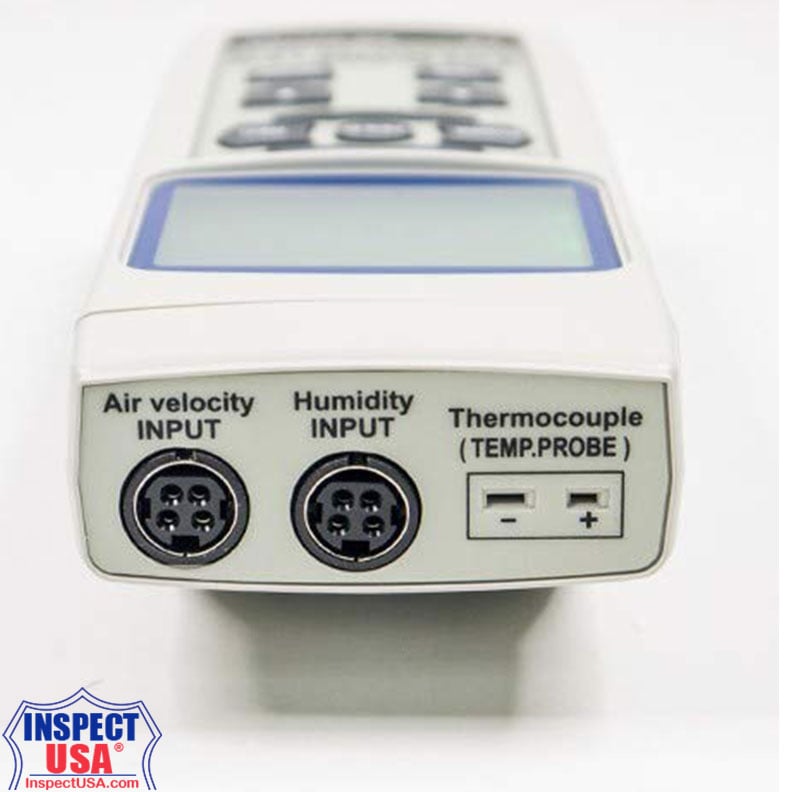

• Two included probes: Anemometer probe and Humidity/Temp. probe
• Functions as an anemometer, humidity/temp. meter, and Type J/K thermometer

Measurement Capabilities

• Air velocity: m/s, ft/min, km/h, knots, mile/h.
• Air temperature: degrees C or degrees F.
• Air flow: CMM, CFM.
• Humidity: 10% to 95% RH.
• Dew point and wet bulb temperature.

Data Logging

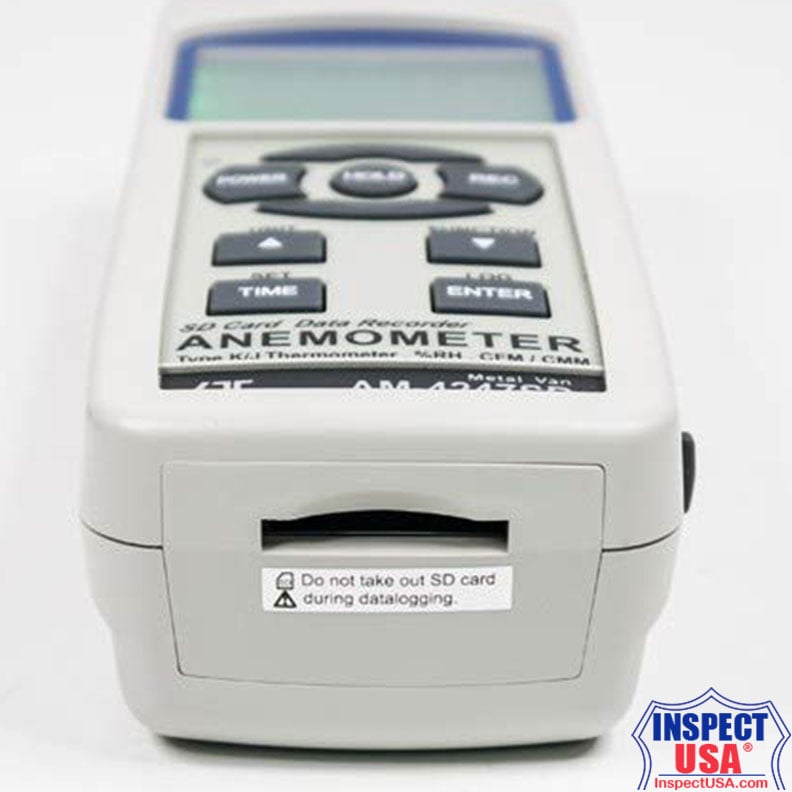

• Real-time SD memory card datalogger with built-in clock and calendar.
• Sampling time settable from 1 second to 3600 seconds.
• Manual datalogger available with position setting (1 to 99).
• No need for extra software; data can be downloaded directly to Excel.

Display and Power

• LCD with green backlight.
• Auto or manual power off.
• Powered by:
  • six AA (UM3) 1.5V alkaline batteries or equivalent.
  • optional DC 9V adapter.

Interfaces

• RS232/USB PC computer interface.

Accuracy and Resolution

• Air velocity: within 2%.
• Air temperature: within 0.8°C/ (1.5°F).
• Air flow: Resolution ranges from 0.001 to 100 CFM.
• Humidity: within (3% reading + 1 digit).

Dimensions and Weight

• Main instrument: 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inches).
• Anemometer sensor head: Round, 72 mm diameter.
• Humidity probe: 197 mm (7.8 inches) in length.
• Weight: 347 g (0.76 lbs).

Additional Features

• Low-friction ball vane wheels ensure high accuracy.
• Fast response time thermistor sensor for air temperature.
• Data hold, record max/min readings.
• Wide range of applications: HVAC systems, air velocities, wind temperature.

Included Accessories

• Instruction manual.
• Anemometer probe.
• Humidity probe.
• Hard carrying case (CA-06).

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
• Data Acquisition Software for Windows SW-U801-WIN.
• Excel Data Acquisition software SW-E802.
• USB Data Acquisition Cable with Driver USB-01.

Patent Information

• Patented in China, Taiwan, Germany, Japan, and pending in the U.S.A.
