Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

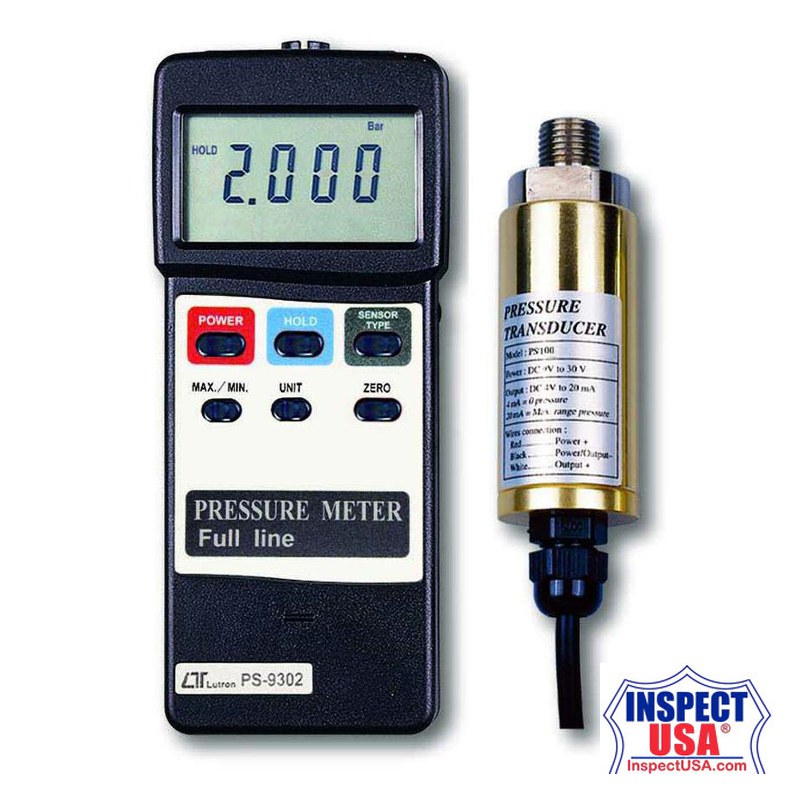

Lutron Pressure Meter (PS-9302)

Reference only — not for sale

Model	PS-9302
Manufacturer	Lutron Instruments
Category	Manometers
Status	Discontinued

Browse all Manometers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Lutron Pressure Meter (PS-9302)

Features:

Meter can cooperate with 2, 5, 10, 20, 50, 100, 400 bar sensor, new calibration are not necessary when change the new sensor .
When change the new pressure sensor, just select pressure type ( 2, 5, 10, 20, 50, 100, 400 bar ) on the front panel button. The sensor type will memorize into the circuit permanently by EEPROM.
8 kind pressure units ( bar, psi, Kg/cm2 mm/Hg, inch/Hg, meter/H20, inch/H20, Atmosphere ) select by push button on the front panel
Optional full line presssure sensor ( 2, 5, 10, 20, 50, 100, 400 bar ) are available.
Auto shut off saves battery life.
4 pin DIN socket, 2 pins to provide DC 5 V exciting voltage ( power supply ) to pressure transducer, another two pins for accept transducer signal of 100mV full scale.
Zero button on the front panel, easy adjust the zero value of pressure sensor.
Push button gain adjustment, usage for calibration precisely if necessary.
Separate pressure sensor, easy operation. & remote measurement.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
Super large LCD display with contrast adjustment for best viewing angle.
Records maximum & minimum readings with recall.
