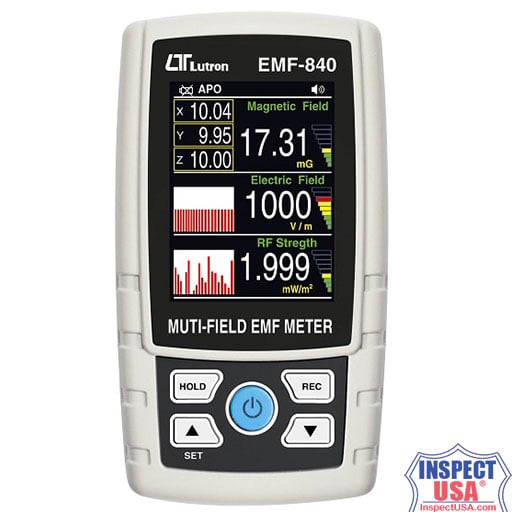

Lutron Multi-Field EMF (EMF-840) RF/LF Electromagnetic Field Meter

Lutron Multi-Field EMF (EMF-840) RF and LF Electromagnetic Field Meter

• RF application:
  • For electromagnetic field strength measurement including mobile phone base station antenna radiation, RF power measurement for transmitters, wireless LAN (Wi-Fi) detection/installation, wireless communication applications (CW, TDMA, GSM, DECT) and microwave leakage.
• RF power measurement Range/Resolution:
  • Frequency range: 50 MHz to 3.5 GHz.
  • 30.00 mV/m to 11.00 V/m, 0.01, 0.1, 1 mV/m.
  • 0.02 uW/cm2 to 32.09 uW/cm2, 0.01 uW/cm2.
  • 0.02 uW/m2 to 320.9 mW/m2, 0.01, 0.1, 1 mW/m2.
  • 0.02 mA/m to 29.17 mA/m, 0.01 mA/m.
• LF application:
  • The EMF tester (LF) is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power line, home appliances and industrial devices.
• Magnetic Fields Measurement range/Resolution:
  • Frequency range: 50 Hz to 60 Hz.
  • mG: 200.0 to 2000, 0.1 mG, 1 mG.
  • uT: 20.00 to 200.0, 0.01 uT, 0.1 uT.
• Electric Fields Measurement range/Resolution:
  • Frequency range: 50 Hz to 60 Hz.
  • 50 V/m to 2000 V/m, 1 V/m.
• Light weight and small size case design are suitable for handling with one hand.
• Wristlet design provides extra protection to the instrument especially for user one hand operation.
• Built-in microprocessor circuit assures excellent performance and accuracy.
• Concise and compact buttons arrangement, easy operation.
• Memorize the maximum and minimum value with recall.
• Hold function to freeze the current reading value.
• Power Supply: (3) AAA alkaline 1.5vDC or equivalent (UM4).
• Power Consumption: Approx. DC 24 mA to 38 mA.
• Dimensions: 4.2" x 2.4" x 1" (107x60x25mm).
• 2.4" TFT LCD display to easy reading.
• Weight: approximately 5.1 ounces (with batteries installed).
