Thermal Anemometer 40-3940 FPM (YK-2005AH) CFM & Temperature

Lutron Thermal Anemometer 40-3940 FPM (YK-2005AH) Also measures CFM & Temperature.

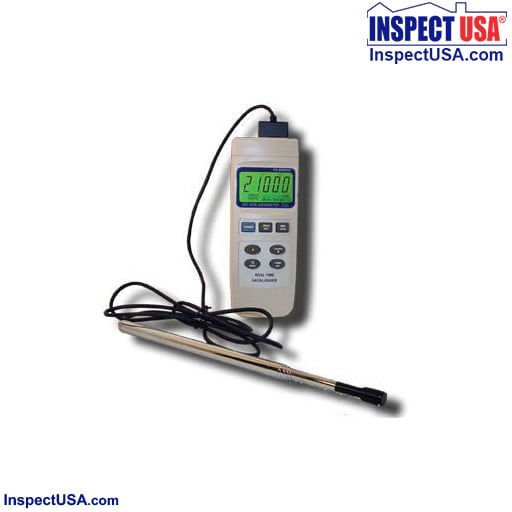

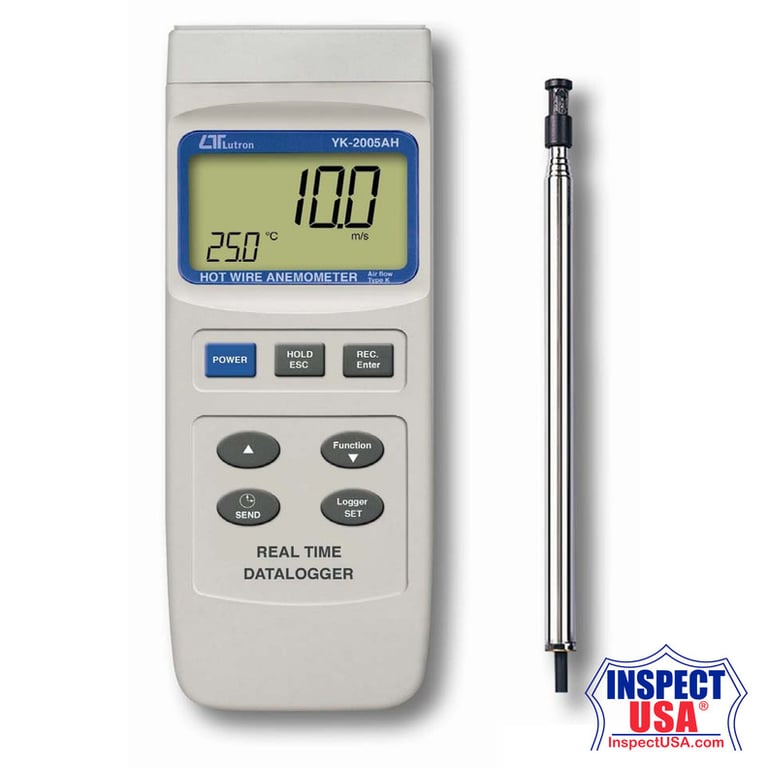

Lutron Thermal Anemometer measures air speed from 40 to 3940 FPM, converts into CFM while measuring air temperature at the same time. Model YK-2005AH

A thermal (often referred to as hot wire sensor) is a type of sensor used to measure fluid velocity, such as air or water, by using the principle of convective heat transfer. A thermal sensor typically consists of a thin wire, which is heated to a constant temperature using a small electrical current. As fluid flows past the wire, heat is transferred from the wire to the fluid, causing a change in the wire's temperature. The change in temperature is proportional to the velocity of the fluid, allowing for a measurement of flow velocity.

Features:

• Combination of a thermal sensor and standard thermistor sensors
• Auto or manual data record (capacity is approximately16,000 data entries)
• Real time data logger - records Hour, Minute, Second, Year & Month
• Reads air velocity, airflow, temperature (type "K" & "J" thermocouple port)
• Auto or manual power off
• Telescopic probe with protected connection port bay
• RS232 computer interface port & 9v power supply port
• Jumbo LCD display with brightness adjustment control
• Min/Max & Data Hold with Zero Adjustment
• Easel back & tripod mount

Specifications:

• Air velocity sensor: glass bead thermistor
• Temperature sensor: thermistor quick response
• Display size: 58 x 34mm LCD

• Air temperature range: 32° to 126° F
• Air temperature resolution: 0.1°
• Air temperature accuracy: 1.5° F
• Type K port temperature range: -58° to 2,372° F
• Type J port temperature range: -58° to 2,012° F
• Power: (4) AA alkaline batteries
• Power current: 9v 70mA DC (optional power supply can be used)
• Power supply for memory: 3vDC battery (CR2032)
• Dimensions:
  • Meter: 203 x 76 x 38mm
  • Vane probe: 12mm diameter x 280 mm minimum length.
  • Probe extends to 940 mm
  • Probe housing: 7/8" at widest point
• Operating temperature:
  • Meter: 32° to 122° F
  • Vane probe: 32° to 176° F
• Operating humidity: Less than 80%
• Sampling time: 1 second
• Weight: 1.13 pounds

Supplied With:

• Telescopic sensor probe
• Hard Plastic carrying case
• Operating instructions

Optional items:

• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.

Replacement Probe for YK-2005AH (YK-2005AHPROBE) with Cord
