TPI Digital Clamp Multimeter (TP-270)
Reference only — not for sale
| Model | TP-270 |
|---|---|
| Manufacturer | TPI |
| Category | Clamp Meters |
| Status | Discontinued |
Product details (archived)
The information below is retained for reference only. This item is discontinued and cannot be ordered.

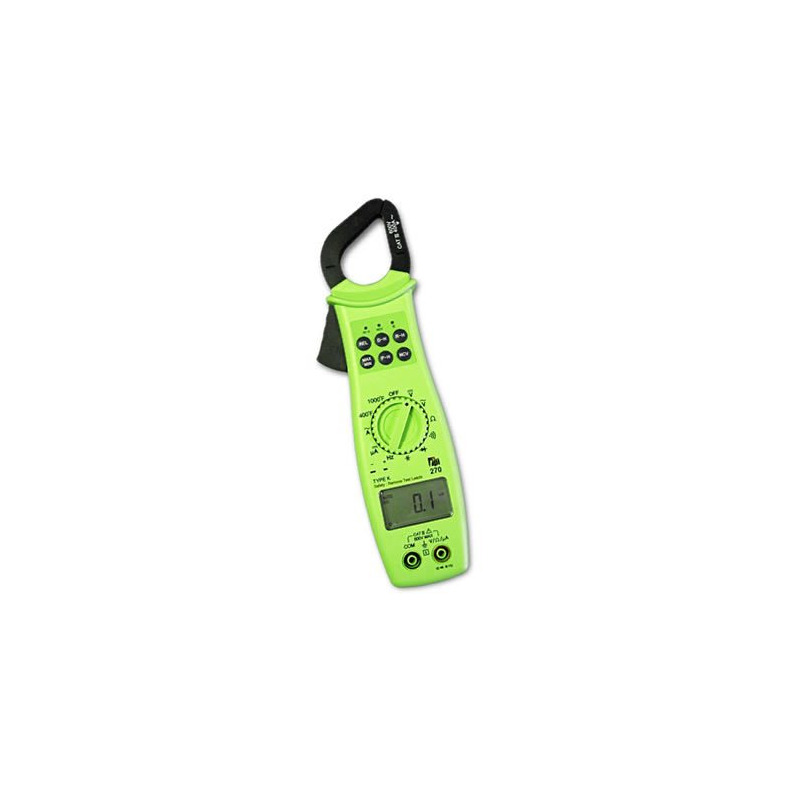

TPI Digital Clamp Multimeter (TP-270)
The TPI 270 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.
Perfect for tight, narrow, spaces. The slim design 270 is a hand-held, autoranging clamp digital multimeter. Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 270. An affordable choice, the 270 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.
The slim design 270 is a hand-held, autoranging clamp digital multimeter (DMM). Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 270. An affordable choice, the 270 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.
- Measure flame safety control current.
- Test run and start capacitors and motors.
- Measure motor run current and capture peak motor start up amperage.
- Measure heat anticipator current.
- Determine thermocouple voltage.
- Test line and control voltages.
- Measure heating element resistance.
- Measure air temperature in ducts.
- Test for the presence of voltage in circuits without contacting the circuit.
- Measure temperature differential using relative mode.
Specifications
- Basic DC Accuracy: 0.5%.
- DC Voltage (maximum): 600V.
- Resolution (maximum): 0.1mV.
- AC Voltage (maximum): 600V.
- 600V Resolution (maximum): 0.1mV.
- DC Amps (maximum): 400μA.
- Resolution (maximum): 0.01μA.
- AC Amps (maximum): 400A.
- Resolution (maximum): 0.01A.
- Resistance (maximum): 40MΩ.
- Resolution (maximum): 0.1Ω.
- Frequency (maximum): 400MHz.
- Resolution (maximum): 0.001KHz.
- Capacitance (maximum): 4,000μF.
- Resolution (maximum): 0.001nF.
- Temperature (maximum): 1,000°F.
- Resolution (maximum): 0.1°.
- Diode: Test Current Max 1.5mA.
- Continuity: Buzzer sounds at approx. 35Ω Response time; 50ms.
- Agency Approval: CEIEC 1010: CATIII; 600V cULus 61010.
- Overall Dimensions: 10" x 1.3" x 2.5" (255 x 32.5 x 65mm).
- Weight: .8 lbs (363g).
