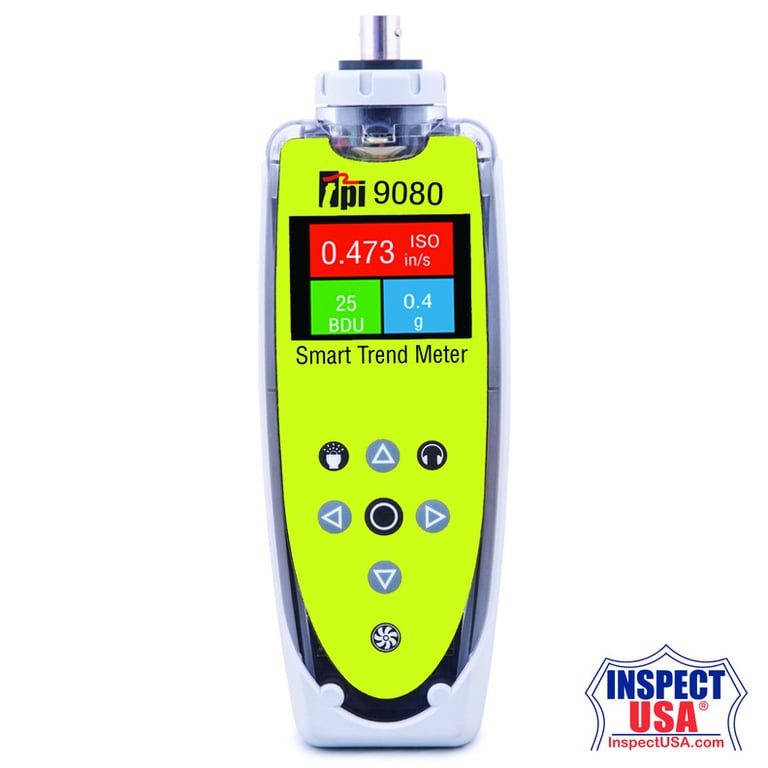

TPI Ex Intrinsically Safe Vibration Analyzer (9080K2)

TPI Ex Intrinsically Safe Vibration Analyzer (9080K2)

The TPI 9080-Ex Intrinsically Safe Smart Vibration Meter Analyzes, Interprets and Trends readings.

The TPI 9080-Ex is an intrinsically safe, simple, easy to use vibration analyzer & smart trend meter that records, analyses and displays vibration signals at the push of a button.

Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. Included VibTrend standard software gives you greater ease of use and flexibility. Windows 10™ compatible.

This configuration (9080K2) is: 9080K1 with Blue-tooth headphones.

• Store analyse and report on all your vibration parameters in one place; unlimited assets with 10 readings per asset with A9084 VibTrend Pro software supplied as standard.
• All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
• Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).
• Identify complex issues: 800-line spectrum with zoom and cursor.

Specifications

• Size: 200 mm x 60mm x 26mm.
• Weight: 280g (not including magnet).
• Water, Sand & Dust: IP67 Waterproof.
• Operating: (-20°C ≤ Ta ≤ +40°C).
• Storage: -4°F to 158°F (-20°C to 70°C).
• Power supply: 2 x AA batteries (Energizer L91).
• Battery life: 2-years standby, 1,500 measurements or approximately 50 hours of normal use.
• Frequency range: ISO: 2/10Hz – 1kHz g: 2Hz – 10kHz.
• Frequency resolution: 100 / 800 lines.
• Displayed amplitude units: Acceleration in g Velocity in inches per second or mm per second Bearing damage in BDU (bearing damage units).
• Displayed Frequency Units: Hertz (Hz), CPM or RPM.
• Input range: +/- 60 g.
• Dynamic range: 96 dB (0.01g resolution).
• Auto set up of VA bands: True.
• Accelerometer connection: BNC connector cable with removable magnet (1mV/g – 10,000mV/g).
• Communication: Bluetooth or USB docking station and cable to PC; data integration using VibTrend software.
• Reading storage: Unlimited assets/10 readings per asset with A9084 VibTrend Pro software as standard.
• Standard Accessories: • A9093 Intrinsically Safe accelerometer and magnet • A9081 docking station with USB cable • A9083 VibTrend Standard software • A9087 Nylon carrying case.
• Optional Accessories: • A9072 4-inch stinger • A9080 Bluetooth Headset.

Optional Components

• A9012 Accelerometer with integral cable
• A9027 Tachometer cable
• A9072 Expended stinger
• A9073 Magnet with 1/4 x 28 stud
• A9080 Blue-tooth headphone
• A9081A Docking cradle & USB cable
• A9082 Strobe with BNC connector
• A9084 VibTrend software (unlimited assets, ten measurement points per asset add up to 1,000 assets per route)
• A9086 Protective boot with magnets
• A9087 9080 carrying case with inserts
• A9088 Blue-tooth headphone carrying case
• A9089 Accelerometer with integral cable and magnet
• A9091 C-Trend II stand alone software
• A9091S C-Trend II Server software
• A9091SC C-Trend II Server Client Software
