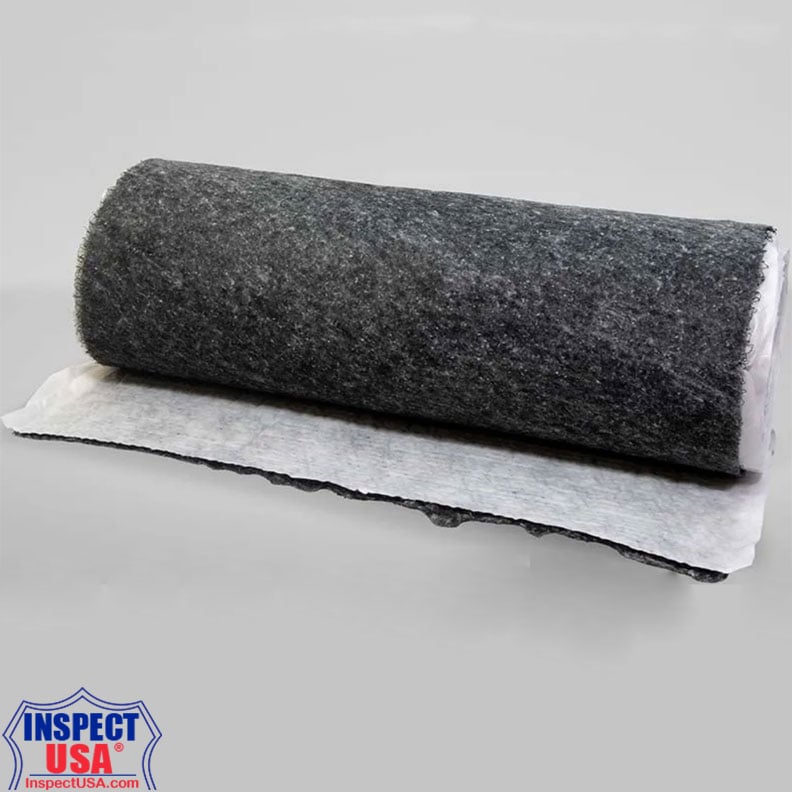

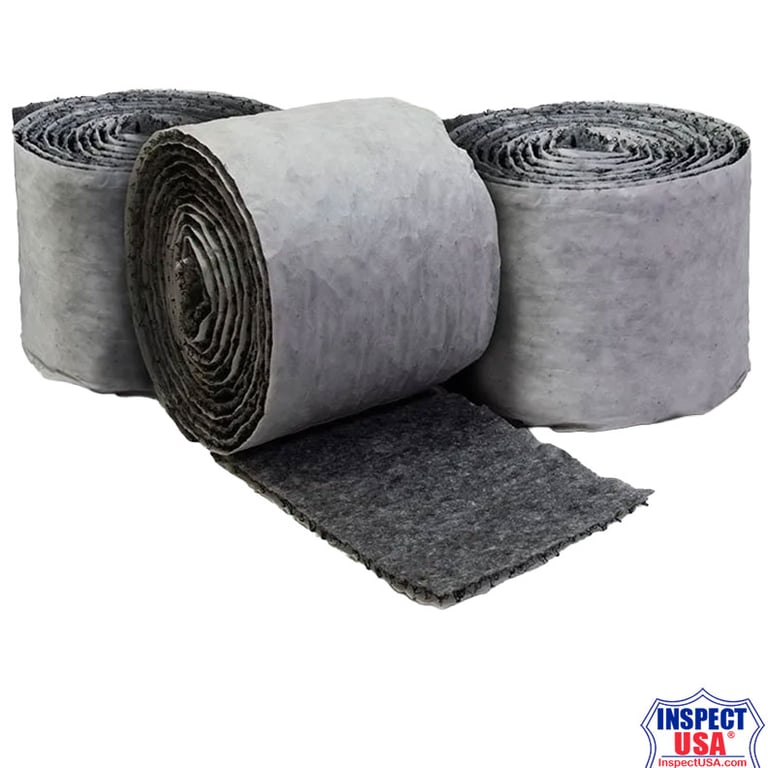

Keene Vapormat 48" x 50' x 0.4" Thick (66105) Channeling Vapor Barrier

The 0.4" thick VAPORMAT™ Radon & Moisture Mitigation Channeling Systems can be used for easy-to-install, time-saving drainage and air flow beneath the vapor barrier

Used to collect radon, moisture and other toxic vapors coming from the soil around a house or building and direct them toward an exhaust stack, which leads them safely out through the roof.
It works effectively as part of a passive soil depressurization system (PSD) or a fan can be added to the exhaust stack for an active soil depressurization system (ASD).

• Reduces radon, moisture and other toxic vapor levels in the living space of a home.
• Reduces the potential for mold and mildew problems.
• Maintains air flow communication across grade beams, downturns, footers and distant corners.
• Reduces the need for an exhaust fan or basement humidifier reducing lifetime energy costs.
• Easy installation, saving time and money over other options.
• Complies with building codes: IRC Appendix F, RRNC 2.0 and ASTM E-1465.
• LEED V4 Building Design and Construction Materials and Resource Credit 3 (1-2 Points).
• Greater than 40% recycled pre-consumer material.

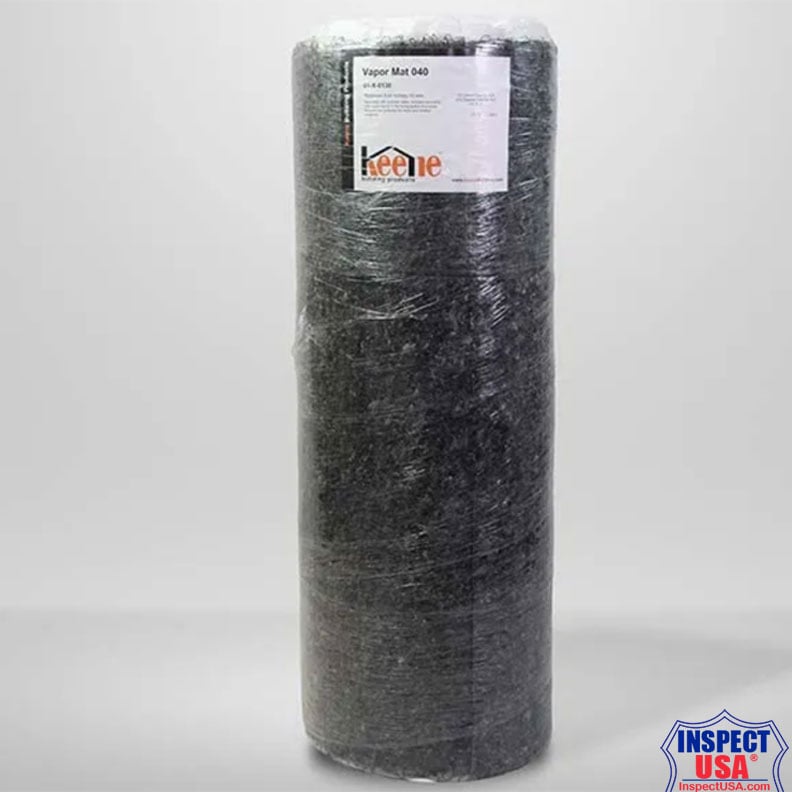

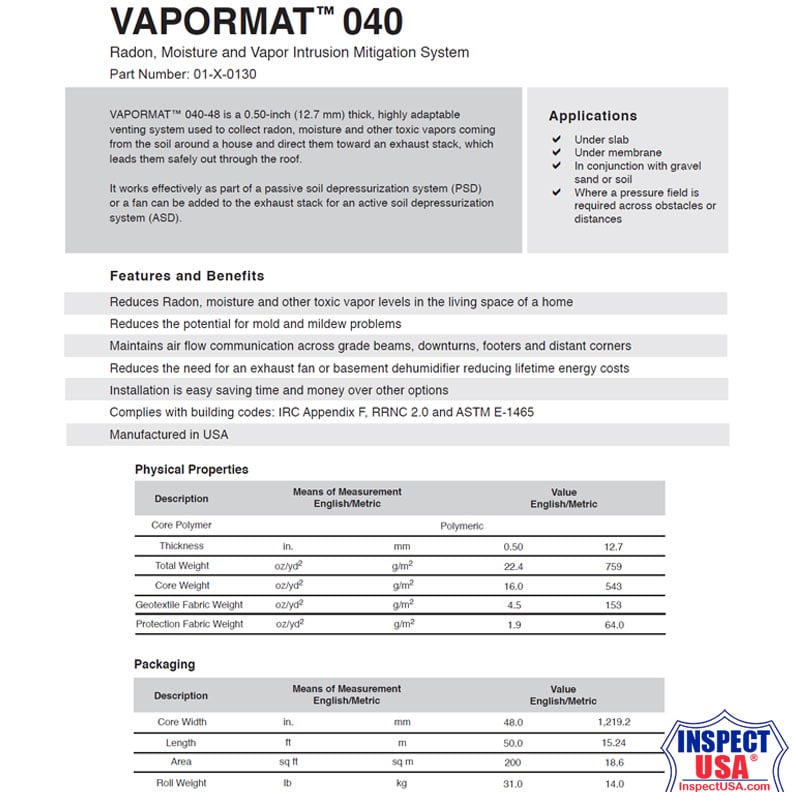

• VaporMat™ 040: 0.5 In / 12.7 mm | Part #: 01-X-0130.

Uses include:

• Under slab.
• Under membrane.
• In conjunction with gravel sand or soil.
• Where a pressure field is required across obstacles or distances.

Manufactured in USA

Download Users Manual (PDF format)
