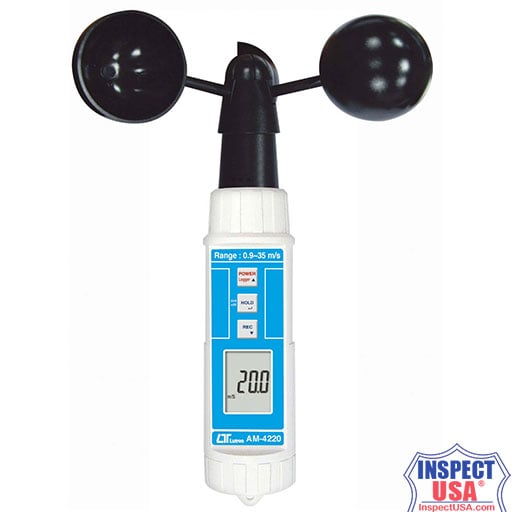

Lutron AM-4220 Wind Speed Cup Vane Anemometer
The AM-4220 Cup Anemometer provides accurate and reliable measurements of wind speed, making it an essential tool for various applications including environmental monitoring, meteorology, and HVAC systems.
1. High Reliability Measurement: Designed for outdoor wind speed measurement with a cup vane anemometer probe, offering high reliability and accuracy.
2. Wide Measurement Range: Measures wind speed from 0.9 to 35.0 m/s, with multiple units available including m/s, km/h, ft/min, knots, and miles per hour (mile/h).
3. IP65 Water Resistance: Features an IP65-rated water-resistant design, ensuring durability and reliability in various environmental conditions.
4. Data Logging and Recall: Includes a 100-point data logger with recall, and records maximum and minimum readings with the ability to recall these values.
5. User-Friendly Display: Equipped with an LCD display for easy readability, and includes data hold and auto power off functions to save battery life.
Specifications:
- Measurement Range and Resolution:
- Air Velocity:
- m/s: 0.9 to 35.0 m/s, Resolution: 0.1 m/s, Accuracy: ±(2% + 0.2 m/s)
- km/h: 2.5 to 126.0 km/h, Resolution: 0.1 km/h, Accuracy: ±(2% + 0.8 km/h)
- ft/min: 144 to 6895 ft/min, Resolution: 1 ft/min, Accuracy: ±(2% + 40 ft/min)
- knots: 1.4 to 68.0 knots, Resolution: 0.1 knots, Accuracy: ±(2% + 0.4 knots)
- mile/h: 1.6 to 78.2 mile/h, Resolution: 0.1 mile/h, Accuracy: ±(2% + 0.4 mile/h)
- Display:
- Type: LCD
- Size: 28 mm x 19 mm
- Power Supply:
- 4 x 1.5V AAA (UM-4) batteries
- Power Consumption: Approx. DC 6.8 mA
- Operating Environment:
- Temperature: 0 to 50℃ (32 to 122℉)
- Humidity: Less than 80% RH
- Dimensions and Weight:
- Main Instrument: 190 x 40 x 32 mm (7.5 x 1.6 x 1.3 inch)
- Cup Vane (3 cups with arm): 135 mm dia.
- Weight: 181 g (0.4 lb, including battery)
Accessories Included:
- Sensor Probe: 1 PC
- Instruction Manual: 1 PC
- Carrying Case: 1 PC
Applications:
- Environmental Monitoring: Measure wind speeds in various outdoor environments.
- Meteorology: Suitable for weather stations and meteorological studies.
- HVAC Systems: Check air flow and wind speed in heating, ventilation, and air conditioning systems.
Link to the technical data sheet (PDF format)
