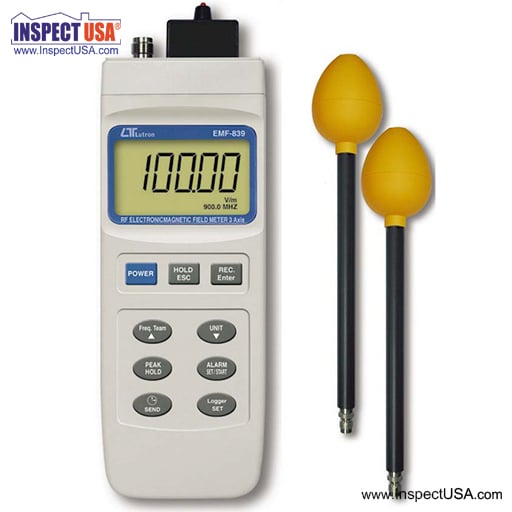

3-Axis Low & High Frequency EMF Meter (EMF-839) with 2 Probes

Lutron 3 Axis Wide Range Radio Frequency Electromagnetic Field Meter with Low Frequency and High Frequency Probes.

This meter is specially developed for measuring or monitoring the electromagnetic field strength in equipment like hospital equipment, radar , microwave oven, cell-phone station, antenna , Radio station, welding equipment, baking equipment, television, computer, monitor, factory, laboratory as well as many other environment applications.

• Wide measuring frequency ranges, 100 KHz to 3 GHz.
• For precision measurement two 3-axis probes are supplied:
  • EP-04L (Low frequency Probe, 100 KHz to 100 MHz).
  • EP-03H (High frequency Probe, 100 MHz to 3 GHz).
• Measuring units: V/m, W/m2, mW/cm2.
• Accuracy is within 2 dB.
• Alarm setting: Buzzer will sound when display over the setting value.
• Peak hold function to latch peak value.
• Real time data logger, build in clock ( hour-MIN-sec.,year-month-date ).
• Auto or manual data record, 16,000 Data logger no.
• Wide sampling time adjustment range from one second to 8 hours 59 minutes 59 seconds.
• Data Output RS 232 PC serial interface.
• Large LCD with contrast adjustment.
• Microcomputer circuit provides special functions & high accuracy.

Range	Resolution	Effective Value
0 to 200.00 V/m	0.01 V/m	>1 V/m
0 to 99.999 W/m2	0.001 W/m2	>0.03 W/m2
0 to 9.9999 mW/cm2	0.0001 mW/cm2	>0.0003 mW/cm2

-

Frequency Range	Accuracy	Cal. Level	Probe
400 KHz to 100 MHz	within 2dB	30 V/m	EP-04L
50 MHz to 2.5 GHz	within 2dB	60 V/m	EP-03H

• Probe structure: 3 Axis.
• Probe Input Impedance 50 OHM.
• Sampling Time: approximately 1 second.
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Power supply:
  • (1) 9v alkaline or equivalent (006P).
  • 110v AC to 9v DC adapter AP-9V110.
  • Optional
    • USB to 9v DC power cable USBP-59.
• Power current: approximately 5.95ma DC.
• Dimensions:
  • Meter: 7.9" x 3" x 1.5" (200 x 76.2 x 36.8 mm).
  • Probes: 2.75" diameter x 11.4" in length (70 diameter x 290 mm).
• Weight: approximately 18.7 ounces (523 g).

Supplied with:

• Hard plastic carrying case (padded).
• Operation manual.
• EP-03H Probe: (100 MHz to 3 GHz).
• EP-04L Probe (100 kHz to 100 MHz).
• Data cards for each probe.
• 110v AC to 9v DC adapter AP-9V110.

Optional:

• Data acquisition software, SW-U801-WIN.
• USB cable, USB-01.
• RS232 cable, UPCB-02.
