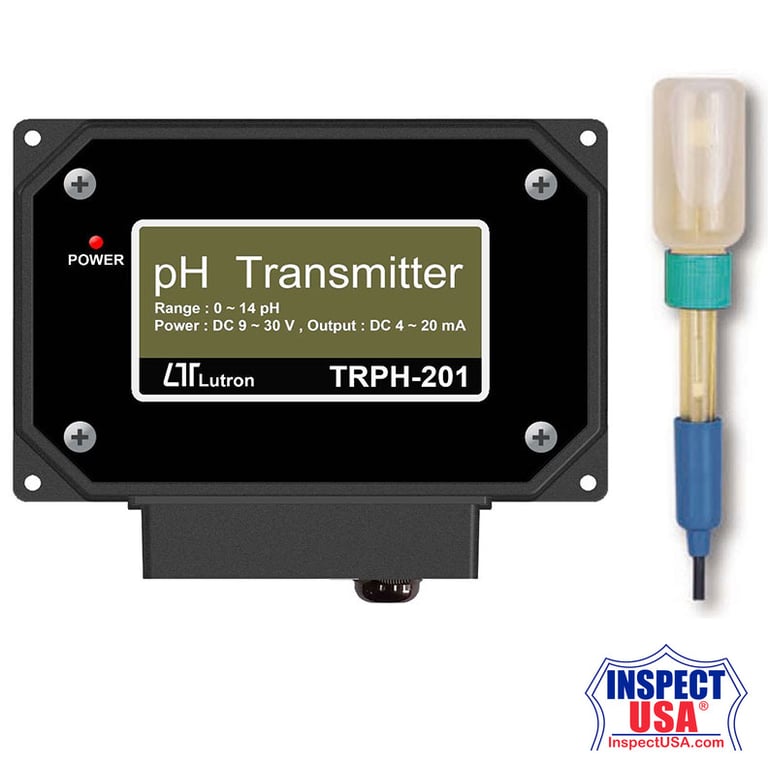

Lutron PH Transmitter (TRPH-201) with PE-03 Probe & Buffer Solutions
The TRPH-201 pH Transmitter offers accurate and reliable pH measurements with a robust design, making it an essential tool for various applications in water conditioning, aquariums, food processing, and more.
1. 4-Wire, 4-20 mA Output: Provides linear current output for pH measurements, facilitating easy integration with various control systems.
2. Wide Measurement Range: Measures pH from 0 to 14.00 with high precision and resolution, ensuring accurate monitoring.
3. Automatic Temperature Compensation: Includes an automatic temperature compensation feature, ensuring precise readings under varying temperature conditions.
4. Easy Installation and Calibration: Features a 4-wire installation and simple calibration using standard pH buffer solutions, enhancing user convenience.
5. Durable and Heavy-Duty Probe: The pH electrode with BNC connector can connect with various systems, making it suitable for a wide range of applications.
Technical Specifications:
- Measurement Range: 0 to 14.00 pH
- Resolution: 0.01 pH
- Accuracy: ±0.02 pH + 2d (at 23±5℃)
- Output: 4 to 20 mA, linear to pH range
- Input Impedance: 10^12 ohms
- Calibration: Using pH 4.00 and pH 7.00 standard solutions
- Power Supply: 9 to 30V DC, 200 mA
- Loop Impedance: Max. 150 Ω@24 V DC
- Operating Temperature: 0℃ to 70℃
- Operating Humidity: Max. 85% RH
- Dimensions: 120 mm x 96 mm x 43 mm (4.7" x 3.8" x 1.7")
- Weight: 164 g (0.36 lb)
Included Accessories:
- Instruction manual
- pH 4.00 buffer solution (PH-04)
- pH 7.00 buffer solution (PH-07)
- PE-03 pH probe.
Optional Accessories:
- pH Electrodes:
- PE-03
- PE-11
- PE-01
- PE-06HD
- PE-04HD
- PE-05T
- PE-03K7
