Lutron WAC-2019SD Data Logging Water Analysis Meter Kit

Name: Lutron WAC-2019SD Data Logging Water Analysis Meter Kit
Brand: Lutron Instruments
SKU: 2367
Price: 428.40 USD
Availability: InStock
Rating: 5.00 (111 reviews)

Model #: WAC-2019SD

UPC: 00810106422336

Condition: New

0 Reviews
Be the first to review this product

Print This Page

Have a question?

Lutron WAC-2019SD Data Logging Water Analysis Meter Kit

Item may vary slightly from image.

List Price: ~~$558.90~~ $428.40

Ordering more than the quantity shown in stock?

Quantities above the quantity shown in stock will ship on or before 10/7/26 - 10/21/26. Orders ship complete by default — if you would like the in-stock portion shipped separately, please indicate at checkout. Ordering the full quantity in one transaction receives the best pricing and any applicable quantity discounts on the total ordered. Learn more about special orders and split shipments.

Add Qty to Cart:

Product 16 of 22

Category: Water Testing

Lutron WAC-2019SD Data Logging Water Analysis Meter Kit accurately measures Conductivity, Total Dissolved Solids TDS or Salt concentration of a liquid. Supplied with CDPB-04 Conductivity Probe.

Improved color display: shows reading values on the screen simultaneously.

Supplied with:

Conductivity Probe (CDPB-04) with 9' Cable.
Carrying case CA-06.
Operation manual.

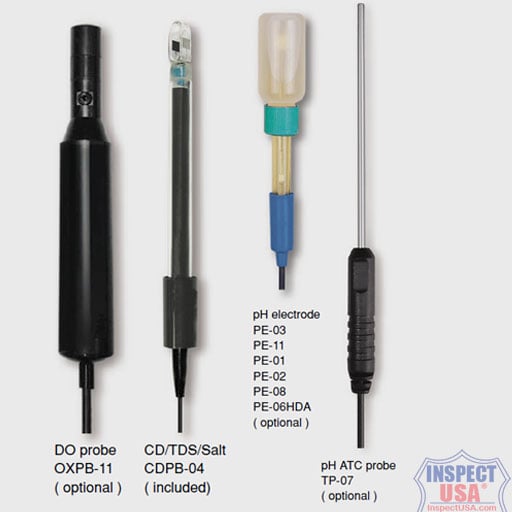

Optional probes allow meter to measure pH, ORP (Oxidation-Reduction Potential) and Dissolved Oxygen (DO). See below

Optional items:

PE-03K7 Combination PH & Temperature probe (ATC).
Heavy duty spear tip pH electrode probe PE-04HD.
Epoxy coated heavy duty pH electrode probe PE-06HDA.
PE-03 Standard pH electrode probe.
- 4.0 buffer solution PH-04A.
- 7.0 buffer solution PH-07A.
Conductivity/ TDS/ Salt probe: CDPB-03.
- 1.413mS conductivity standard CD-14.
ORP probe ORP-14 1999 mV.
Dissolved oxygen probe OXPB-11.
- DO probe electrolyte OXEL-03.
Automatic temperature compensation (ATC) temperature probe TP-07.

Replacement Conductivity/ TDS/ Salt probe: CDPB-04. (supplied with WAC-2019SD kit)

USB to 9v DC power cable USBP-59.
110v AC to 9v DC adapter AP-9V110.
Data acquisition software SW-U801-WIN.
USB cable USB-01.
SD card 16 GB capacity: SD-16GB.

Specifications:

pH: 0 to 14.00 pH
ORP: ±1999 mV
Conductivity: 200 uS/2 mS/20 mS/200 mS
TDS: 200/2000/20000/200000 PPM
Dissolved oxygen: 0 to 20.0 mg/L
Salt: 0 to 12 % (% weight)
Hardness: 0 to 100,000 ppm
Resistivity: 5 ohm-cm to 99.99 Meg ohm-cm
ATC (automatic temperature compensation)
Data hold, record max. and min. reading
RS232/USB PC COMPUTER interface
CD/TDS/Salt probe (CDPB-04 is included)
2.4" TFT LCD with backlight
SD card capacity: 1 GB to 16 GB
Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter

Link to the technical data sheet that is provided for Lutron wac-2019sd

Download Users Manual (PDF format)

Lutron Certificate of Calibration Lutron Instruments & Solutions arrive brand new from Lutron with this factory calibration certificate enclosed. Until our chain of custody is broken we are certain and guaranty that every meter meets this standard at the time of shipment. InspectUSA would need to ship the new meter directly to your NIST lab, with our guaranty that it would meet NIST standards. We must ship the instrument direct to an approved NIST lab for this guaranty to be applicable. Once the chain of custody is broken for whatever reason, this guaranty is no longer valid.

ISO-9001 Certification
