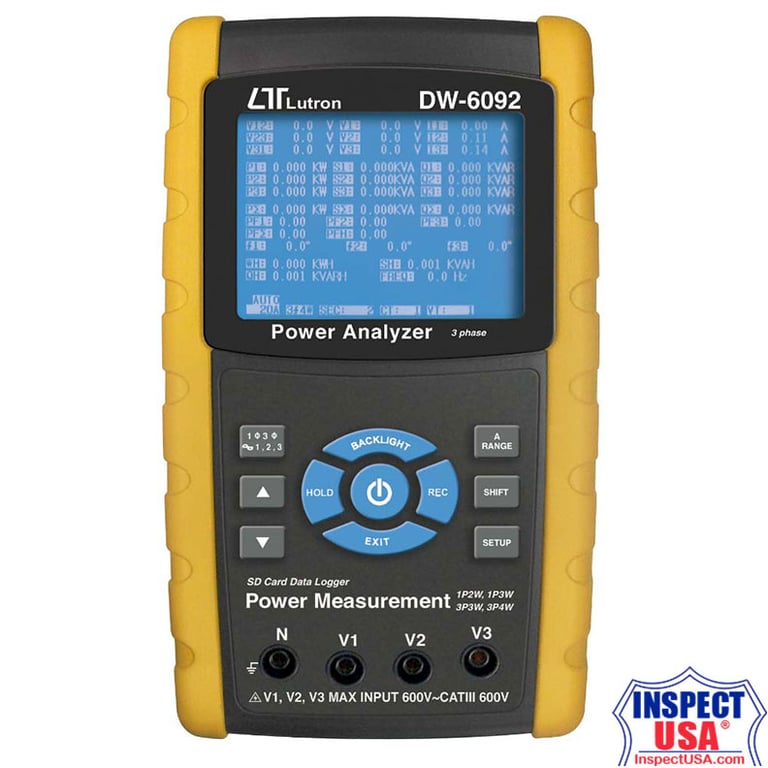

Lutron 3 Phase Power Analyzer (DW-6092) with Data-Logging

Lutron 3 Phase Power Analyzer (DW-6092) with Data-Logging

The DW-6092 3-Phase Power Analyzer offers accurate and reliable power measurements with advanced features, making it an essential tool for various industrial applications.

Key Features:

• Comprehensive Power Analysis:
  • Supports 3-phase multi-power system configurations: 1P/2W, 1P/3W, 3P/3W, and 3P/4W.
  • Measures True RMS values for voltage and current, as well as True Power (KW, MW, GW), Apparent Power (KVA, MVA, GVA), and Reactive Power (KVAR, MVAR, GVAR).
• Real-Time Data Logging:
  • Equipped with an SD card real-time data logger with built-in clock and calendar.
  • Allows for accurate time-stamped data recording.
  • Data can be exported directly to Excel for further analysis.
• High Accuracy and Programmability:
  • Features programmable CT and PT ratios.
  • Provides high accuracy for voltage (±0.5%+0.5V) and current (±0.5%+0.1A for <10A) measurements.
• User-Friendly Operation:
  • Large dot matrix LCD display with backlight for clear readability.
  • Includes data hold function and memory recall for maximum and minimum values.
  • Easy operation with auto and manual range selection.
• Comprehensive Accessories and Data Management:

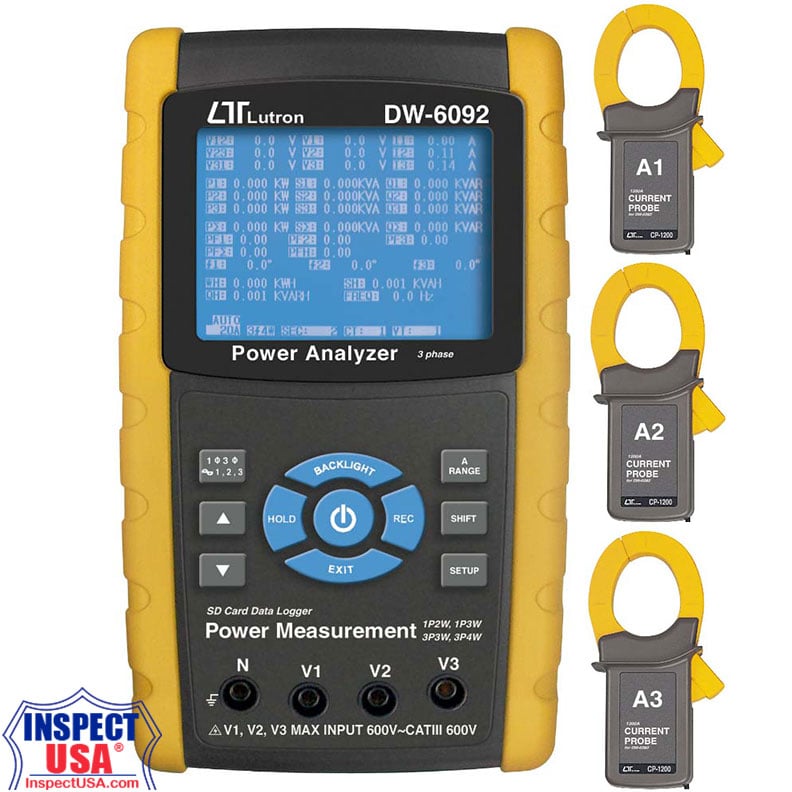

  • Complete with 4 test leads, 4 alligator clips, 3 clamp probes, AC to DC 9V adapter, 2GB SD card, and carrying bag.

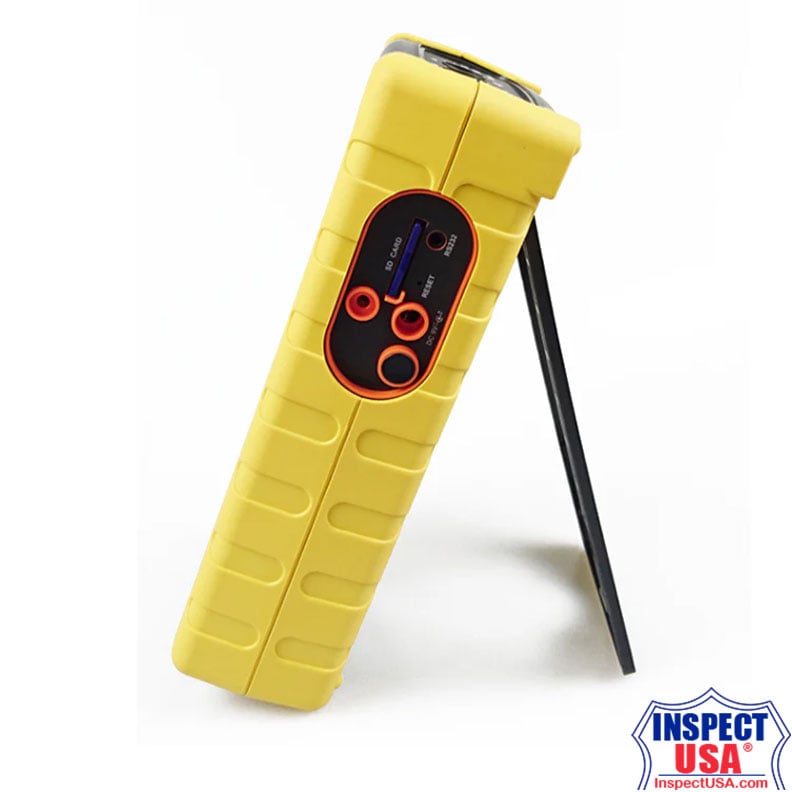

  • Features RS232/USB computer interface for easy data transfer and integration with Data Acquisition software.

Technical Specifications:

• Measurement Range:
  • Voltage: 10 to 600 ACV
  • Current: 0.2 to 1200 ACA
• Resolution:
  • Voltage: 0.1V
  • Current:
    • 20A: 0.001A (<10A), 0.01A (≥10A)
    • 200A: 0.01A (<100A), 0.1A (≥100A)
    • 1200A: 0.1A (<1000A), 1A (≥1000A)
• Accuracy:
  • Voltage: ± (0.5% + 0.5V)
  • Current:
    • ± (0.5% + 0.1A) for <10A
    • ± (0.5% + 0.5A) for <100A
    • ± (0.5% + 5A) for <1000A
  • Power Factor: ± 0.04
  • Phase Angle: ± 1°
  • Frequency: ± 0.1 Hz
  • Active Power: ± (1% + 0.008 KW)
  • Apparent Power: ± (1% + 0.008 KVA)
  • Reactive Power: ± (1% + 0.008 KVAR)
  • Watt Hour: ± (2% + 0.008 KWH)
  • VA Hour: ± (2% + 0.008 KVAH)
  • VAR Hour: ± (2% + 0.008 KVARH)
• Display: LCD, 81.4 x 61 mm, dot matrix (320 x 240 pixels) with backlight
• Power Supply: 8 AA batteries (1.5V) or AC to DC 9V power adapter
• Dimensions:
  • Meter: 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inches)
  • Clamp: 210 x 64 x 33 mm (8.3 x 2.5 x 1.3 inches)
  • Clamp Jaw: 50 mm (2.0 inches) outside diameter
• Weight:
  • Meter: 1049 g (includes batteries)
  • Clamp: 522 g

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
• Data Acquisition Software for Windows SW-U811-WIN.
• USB Data Acquisition Cable with Driver USB-01.
