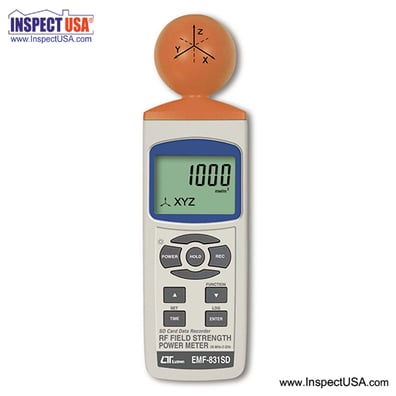

Lutron Radio Field Strength Power Meter (EMF-831SD) Data Logging

Model #: EMF-831SD
Regular Price: $379.95
$295.00

Print Friendly View
Add Qty to Cart:

Lutron Radio Field Strength Power Meter (EMF-831SD) Data Logging
Click to Enlarge

Reviews
First Product Previous Product Product 28 of 29 Next Product Last Product
Category EMF / Microwave Meters

Lutron RF Strength Power Meter, Model number EMF-831SD measures Radio Field Strength with Data Logging.

Radio field strength power measures GSM, CDMA, TDMA, WiFi, WiMAX Bluetooth, security systems, cordless phones, Zigbee and many more.

  • Wide band, 10 MHz to 8 GHz Frequency range.
  • Measuring units: uW/m^2, mW/m2, W/m^2, mV/m, V/m, uA/m, mA/m, uW/m^2, mW/m^2, W/m^2 uW/cm^2 mW/cm^2.
  • 3 axis RF sensor.
  • Backlit graphics dot matrix LCD with 4 function screens, digital and bar-graph display with warning symbol.
  • Real time SD memory card Datalogger, with Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
  • Beeper will sound for warning if measuring data are over the alert value.
  • Manual datalogger is available.
  • User can down load all the recorded measured values along with their timestamp information (year/month/date/hour/minute/second) to a spreadsheet.
  • SD card capacity: 1 GB to 16 GB.
  • Auto power off (can be disabled).
  • Data hold, record max. and min. reading.
  • Microcomputer circuit for high repeatability.
  • Powered by (6) AA (UM3) 1.5v alkaline batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.

Specifications:

  • Circuit Custom one-chip of microprocessor LSI circuit.
  • Display LCD size : 52 mm x 38 mm, LCD with backlight ( on/off ).
  • Frequency range 10 MHz to 8 GHz.
Unit Range Resolution
mV/m, V/m 20 mV/m to 108.0 V/m0.1 mV/m to 0.1 V/m
uA/m, mA/m 53u A/m to 286.4 mA/m 0.1 mA/m
uW/m^2, mW/m^2, w/m^2 1 uW/m^2 to 30.93 W/m^2 0.1 uW/m^2 to 0.01 W/m^2
uW/cm^2, mw/cm^2 0 uW/cm^2 to 3.093 mW/cm^20.001 uW/cm^2 to 0.001 W/cm^2
  • Operating Temperature: 32 F to 122 F (0 to 50 C).
    NOTE most batteries are not rated for below -4 F or above 125 F.
  • Operating Humidity: less than 85% RH non-condensing.
  • Weight: approximately 9.5 ounces (265 g).
  • Dimensions: 9.1 x 2.8 x 1.8. inches (230 x 70 x 45 mm).

Optional Accessories

  • SD Card ( 2 GB ).
  • AC to DC 9V adapter.
  • USB power to DC 9V converter, USBP-59.
  • USB cable, USB-01.
  • RS232 cable, UPCB-02.
  • Data acquisition software, SW-U801-WIN.
  • Soft carrying case, CA-05A.
