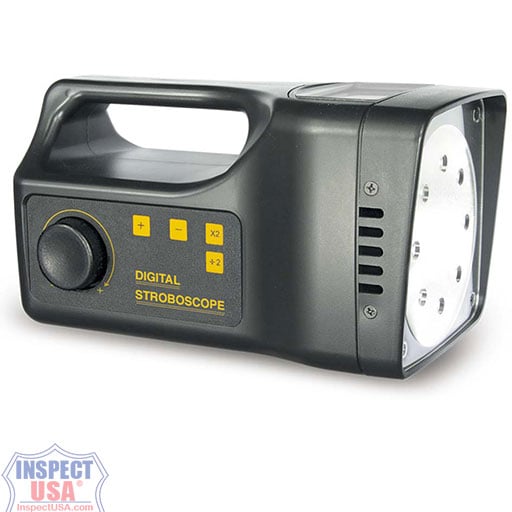

Lutron DT-2349 Stroboscope 60 to 32,000 Revolutions Per Minute RPM or Flashes Per Minute FPM
The DT-2349 Digital Stroboscope provides accurate and reliable measurements of rotational speed using high-intensity light.
1. High Accuracy and Stability: Utilizes a microprocessor LSI circuit and crystal time base to ensure high accuracy and stability in measurements.
2. Wide Measurement Range: Capable of measuring speeds from 60 to 32,000 RPM (rounds per minute), offering versatility for various industrial applications.
3. Digital Synthesis Circuit: Ensures high stability and high-resolution adjustments, with a digital readout for easy operation.
4. High Intensity Xenon Flash Tube: Provides a high-intensity light source for clear and precise measurements, with easy-to-replace flash tubes.
5. User-Friendly Interface: Features digital adjustment buttons for easy operation and a large LCD display for clear readouts.
Technical Specifications:
- Display:
- Type: 5 digits LCD display
- Range: 0 to 99,999
- Measurement Range and Resolution:
- Flash Range:
- 60 to 32,000 RPM (FPM)
- RPM (rounds per minute) / FPM (flashes per minute)
- Resolution:
- 0.1 RPM (< 1,000 RPM)
- 1 RPM (≥ 1,000 RPM)
- Accuracy:
- ±(0.05% + 1 digit)
- Flash Tube:
- Type: Xenon lamp
- Flash Duration: Approximately 5 to 12 microseconds
- Flash Color Temperature: Xenon white, 6,500 K
- Flash Energy: 4 Watts-seconds (joules)
- Beam Angle: 80 degrees
- Flash Tube Replacement: Required when the instrument starts flashing irregularly at speeds > 3600 RPM/FPM
- Power Supply:
- AC Power: 100V to 240V to DC 9V (3A) adapter included
- Optional: DC 1.2V Ni-MH rechargeable battery (UM-1, D size x 4 PCs, not included)
- Power Consumption:
- DC 2.4A (3600 FPM)
- Operating Environment:
- Temperature: 0 to 50℃ (32 to 122℉)
- Humidity: Less than 80% RH
- Dimensions:
- Size: 21 x 12 x 12 cm (8.3 x 4.8 x 4.8 inches)
- Weight: 1 kg (2.2 lb)
- Housing:
- Compact and heavy-duty plastic injection case with plastic mirror type reflector
Accessories Included:
- Operation Manual: 1 PC
- AC to DC 9V Adapter: 1 PC
Optional Accessories:
- Flash Xenon Tube (Model: TBXE-2289)
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and provides special functions and features.
- Digital Adjustment Buttons: Easy operation with +, -, x2, and ÷2 buttons.
- High Intensity Light: High-intensity xenon flash tube for clear and precise measurements.
Applications:
Industrial Maintenance and Production: Ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors, and other equipment used in general industrial maintenance, production, and quality control.
