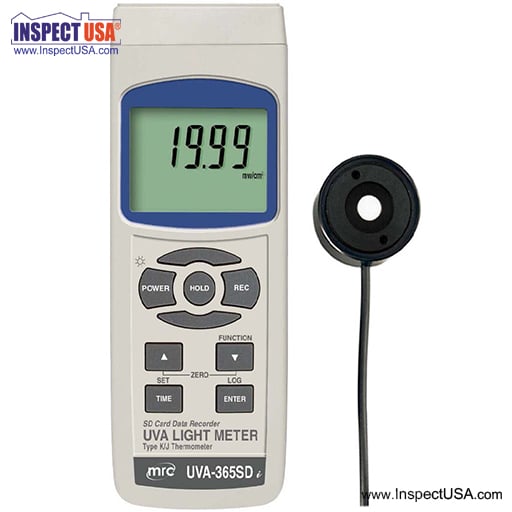

UVA Ultra-Violet Light Meter (UVA-365SD) DataLogging

Lutron UVA Ultra-Violet Light Meter (UVA-365SD) DataLogging

• Long wave 365 nm ultra-violet irradiance measurement.
• Professional UVA light meter, used to measure the UVA irradiation value of the UVA light source.
• Measurement ranges:
  • 2 mW/cm2
  • 20 mW/cm2.
• UVA Light sensor with cosine correction filter.
• UVA function build Zero button.
• Microprocessor circuit provides high reliability and durability.
• Separate UVA light probe allows user to measure the UV light at an optimum position.
• Type K, Type J thermocouple thermometer.
• Real time SD memory card Datalogger, Built-in
• Air temperature measures in either degrees Celsius or Fahrenheit
• Type K and Type J thermocouple thermometer ports
• Real time SD memory card Datalogger with Built-in time and date stamp, sampling time can be set from 1 second to 3600 seconds
• Datalogging is available in either automatic or manual mode.
• Special software not required, after recording with the datalogger, just insert the SD card into your computer card reader, then upload all of the measured values with the time & date information (year/month/date/hour/minute/second) into your favorite spreadsheet software (CVS).
• Recall minimum and maximum reading.
• Fold out easel back allowing meter to sit upright on a flat surface.
• Brass threaded tripod mount.
• Automatic temperature compensation.
• RS-232 PC computer interface.
• Auto power off (can be disabled).
• COO: Taiwan.
• Harmonized code: 9027.80.90.

Specifications:

• Measurement ranges:
  • Range 1: 2 mW/cm2
    1.999 mW/cm2 with 0.001 resolution.
  • Range 2: 20 mW/cm2
    19.99 mW/cm2 with 0.01 resolution.
• Accuracy: within 4% Full Scale + 2 digits.
• Ultra-Violet L-Sensor with cosine correction filter and has a heavy duty sensor structure with metallic housing case.
• Sampling time: approximately 1 second
• Operating Temperature (ambient): 32° F to 122° F
  NOTE most batteries are not rated for below -4° F or above 125°F
• Operating Humidity: less than 85% RH, non-condensing
• Power supply: (6) AA alkaline batteries or optional 9 volt DC Adapter AP-9V110
• Power current:
  • without SD card saving data and back-light off: 6.5mA DC
  • With SD card saving data and back-light off: 30mA DC
    Note: add 16mA DC when back-light is on
• Weight:
  • Meter: 12.5 ounces (351 grams)
  • UVA probe: 3.7 ounces (103 grams)
• Dimensions:
  • Meter: 7" x 2.8" x 1.9" (177 x 67 x 45mm)
  • UVA probe:
    • Head: (45 x 32mm diameter)
    • Handle: (125 x 24mm diameter)

Optional Accessories

• 16gB SD Memory Card SD-16GB.
• USB to 9v DC power cable USBP-59.
• 110v AC to 9v DC adapter AP-9V110.
• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver USB-01.

Applications include: Monitoring blue light radiation hazards in welding, UV sterilization, Graphic arts, Photochemical matching, UV EPROM erasure, Photoresist exposure, Curing of inks, adhesives and coatings.
