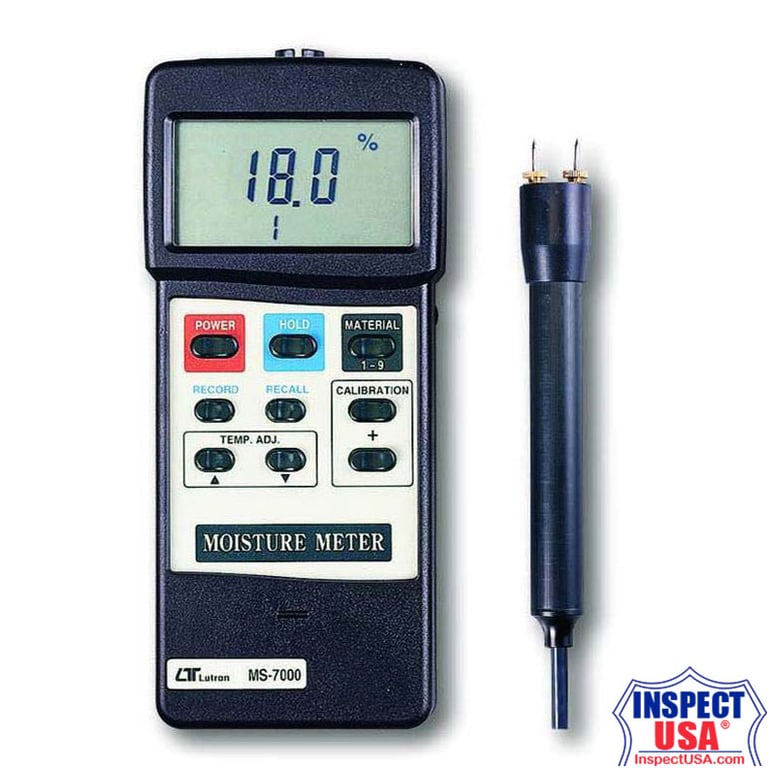

Lutron Wood Moisture Meter 9-30% (MS-7000) Remote Probe
The MS-7000 Moisture Meter offers accurate and reliable measurements with a smart design, making it an essential tool for various applications.
1. Wide Measurement Range:
-Measures moisture content over a range of 9% to 30%, suitable for various types of wood and timber.
2. Extensive Calibration Options:
-9 material species groups in memory with calibrations for about 150 different species of wood/timber, providing versatility for different measurement needs.
3. Built-in Self-Calibration and Temperature Compensation:
-Features a built-in self-calibration circuit and manual temperature compensation setting from 0℃ to 50℃, ensuring accurate readings under varying conditions.
4. Data Hold and Max/Min Recording:
-Allows for data hold to freeze the desired value on display and records maximum and minimum readings, enhancing data analysis capabilities.
5. RS232 Computer Interface:
-Equipped with an RS232 interface for easy data transfer to a PC, facilitating further analysis and record-keeping.
Technical Specifications:
- Measurement Range: 9% to 30% moisture content
- Memory: 9 material species groups with calibrations for about 150 species of wood/timber
- Display: 13 mm (0.5") super large LCD with dual function display
- Temperature Compensation: Manual, from 0℃ to 50℃
- Sampling Time: Approximately 0.8 seconds
- Power Supply: 9V battery (006P, MN1604)
- Power Consumption: Approximately 6.5 mA
- Dimensions:
- Main Instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)
- Moisture Probe: Round, 23 mm Dia. x 165 mm (0.9 inches Dia. x 6.5 inches)
- Weight: 330 g (0.73 lb)
- Included Accessories: Instruction manual, moisture probe, extra contact pins, hard carrying case
Link to the technical data sheet that is provided by the manufacturer
