Industrial Size 3-4 minute burn time, 2,500 Cubic Feet GREEN non-toxic smoke emitters. Smoke emitters provide an inexpensive method of generating swirling smoke. A great product for testing of high, medium, and low pressure duct-work systems and also for air balancing. The smoke emitted does not contain oil nor zinc. It is non-toxic and has the same density as air, so that it is possible to observe true air movements without the complicating factor of having to allow for the natural rise or fall of the smoke. The particle size is 0.3 to 2.5 microns making it ideal to check HEPA filters. The smoke cartridges produce a generous amount of smoke, which is emitted at a constant rate to help with the identification of flow patterns.

Size	Burn time	White/Grey	Blue	Green	Red	Yellow	Orange	Volume
Size	Burn time	White/Grey	Blue	Green	Red	Yellow	Orange	m³	Cubic Feet
1 gram	15-20 sec	S210	X	X	X	X	X	0.7	20
3 gram	40-45 sec	S102	X	X	X	X	S102-OR	2.5	150
9 gram	65-90 sec	S103	X	X	X	X	S103-OR	8.5	600
18 gram	3-4 min	S104	S104-BL	S104-G	S104-R	S104-Y	S104-OR	17	1,200
60 gram	3-4 min	S105	S105-BL	S105-G	S105-R	S105-Y	S105-OR	55	2,500
430 gram	5-8 min	S107	X	X	X	X	S107-OR	400	18,000

Applications:

Testing for leaks in duct work, heat exchangers, furnaces, plumbing
Testing air movement & ventilation systems
Turbulence around fume hoods
Duct mounted smoke detectors
Fume evacuation from gas heaters, etc
Ventilation in personal spaces
Ventilation in stables, poultry farms, etc
Positioning of smoke detectors
Leakage in ventilation systems
Leakage in drainage systems
Exhaust fans
Fire drills, training exercises for buildings, rescue & more
Military training & drills
Special effects & hobbies

Directions:

Place cartridge on non-flammable surface. A metal can or bucket with sand in the bottom is a great way to be safe.
NOTE: maintain at least 7" between cartridges when several are lit.
Light open end with a flame from lighter, match etc.

Warning: Poisonous to swallow. To be kept away from children & animals. Do not use smoke emitters near flammable materials, gas etc.

Download MSDS (Material Safety Data Sheet)

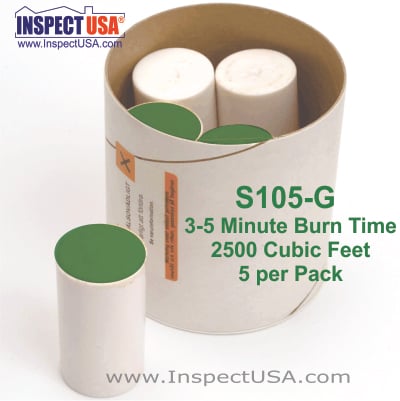

Smoke Emitter: Green 2500 Cubic Feet (S105-G) 4 Minutes 5 PACK
