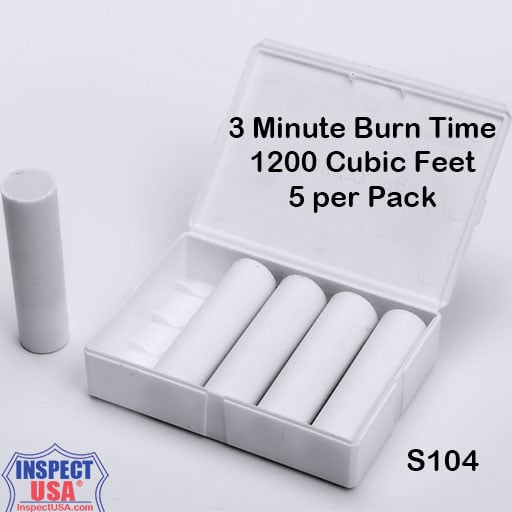

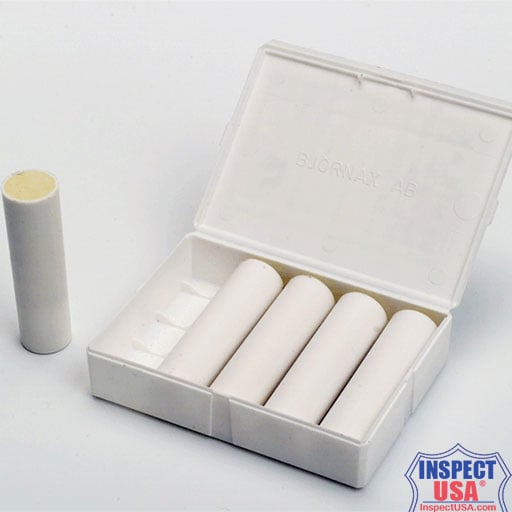

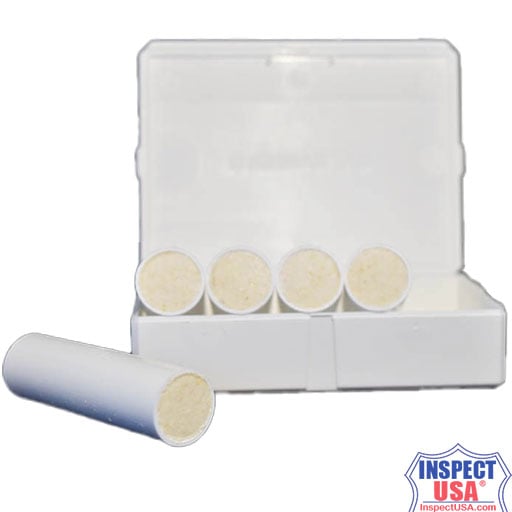

Smoke Emitter White, 1200 Cubic Feet (S104) 3 Minute Burn 5 PACK

Model #: S104

Condition: New

Regular Price: $23.99 $17.49

Quantity Discounts
1-4 5-9 10-19 20-49 50+
$17.49$16.62$15.74$14.87$13.99
Add Qty to Cart:
Product 3 of 43

5 Pack of White to Light Grey Ventilax Testing Smoke Emitter Cartridges. Each smoke cartridge burns for approximately 4 minutes, which produces 1,200 Cubic Feet of non-toxic smoke used for special effects, training, testing, balancing etc.

S104: 5 Pack of Ventilax 3-4 minute, 1,200 Cubic Feet White/Grey non-toxic smoke emitters. Smoke emitters provide an inexpensive method of generating swirling smoke. A great product for testing of high, medium, and low pressure duct-work systems and also for air balancing. The smoke emitted does not contain oil nor zinc and will not leave any residue. It is non-toxic and has the same density as air, so that it is possible to observe true air movements without the complicating factor of having to allow for the natural rise or fall of the smoke. The particle size is 0.3 to 2.5 microns making it ideal to check HEPA filters. The smoke cartridges produce a generous amount of smoke, which is emitted at a constant rate to help with the identification of flow patterns.

Features:

  • 3-4 minute burn time
  • Produces 1,200 cubic feet of smoke
  • Dimensions: 2.5" x 0.75" diameter (62 x 18mm)
  • White/Grey Smoke
  • Excellent method to visualize airflow patterns
  • Non-toxic smoke candles
  • Does not contain oil, zinc, rubber powder or naphthalene
  • Leaves no visible residue
  • Particle size is 0.3 to 2.5 microns
  • Cartridges are enclosed in environmentally friendly plastic housing with a humidity seal
  • 2 year shelf life
  • Store at temperatures below 95 degrees Fahrenheit
Alternate Sizes and Colors Availability
SDS Safety Data Sheet or MSDS Material Safety Data Sheet Click to Download Safety Data Sheet - SDS
Burn
time
White
Clean Blue Green Red Yellow Orange Dark
Grey
Per-
fumed
Volume
Cu.Ft.
Size
Gram
10-15sec S210 X X X X X X X X 20 1
40-45sec S102 S102-CL X X X X S102-OR X S102-P 150 3

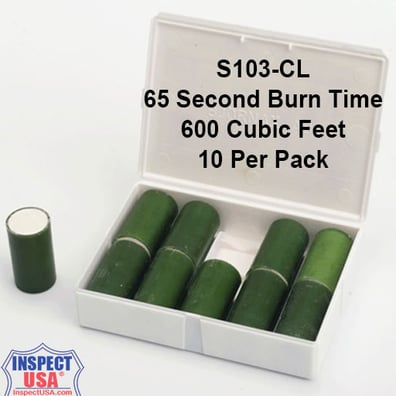

65-90sec S103 S103-CL X X X X S103-OR X S103-P 600 9
3-4min S104 S104-CL S104-BL S104-G S104-R S104-Y S104-OR S104-DG S104-P 1,200 18
3-5min S105 S105-CL S105-BL S105-G S105-R S105-Y S105-OR S105-DG S105-P 2,500 60
5-8min S107 X X X X X S107-OR X X 18,000 430
Directions (Use proper eye protection):
  • Place the smoke emitter (plastic container) on a non-conductive, non-flammable surface (ie brick, concrete, flat stone)
    note: a metal can or bucket with sand in the bottom is a great way to be safe
  • Ignite the chalky end of the cartridge with a flame from lighter, match etc.

Maintain at least 5 inches between S104 cartridges when several are to be lit at the same time.

Warning:

  • Poisonous to swallow. Should be kept away from children and animals.
  • Do not use smoke emitters near flammable materials, gas etc.
  • Avoid breathing in smoke. If unavoidable use proper protection (down to 3 microns)

Applications:

  • Testing for leaks in duct work, heat exchangers, furnaces, plumbing
  • Special effects, photography, video, RC planes and many other hobbies
  • Testing air movement and ventilation systems
  • Turbulence around fume hoods and exhaust fans
  • Duct mounted smoke detectors
  • Fume evacuation from gas heaters, chimney or wood stove
  • Ventilation in personal spaces, stables, poultry farms etc
  • Positioning of smoke detectors
  • Leakage in ventilation systems or drainage systems
  • Fire drills, training exercises for buildings, rescue and more
  • Military training and drills
  • Airsoft and paintball games

Warning: Poisonous to swallow. To be kept away from children & animals. Do not use smoke emitters near flammable materials, gas etc.
