Lutron Power Controller/Monitor (PWA-6065)

Reference only — not for sale

Model	PWA-6065
Manufacturer	Lutron Instruments
Category	Water Testing
Status	Discontinued

Browse all Water Testing Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

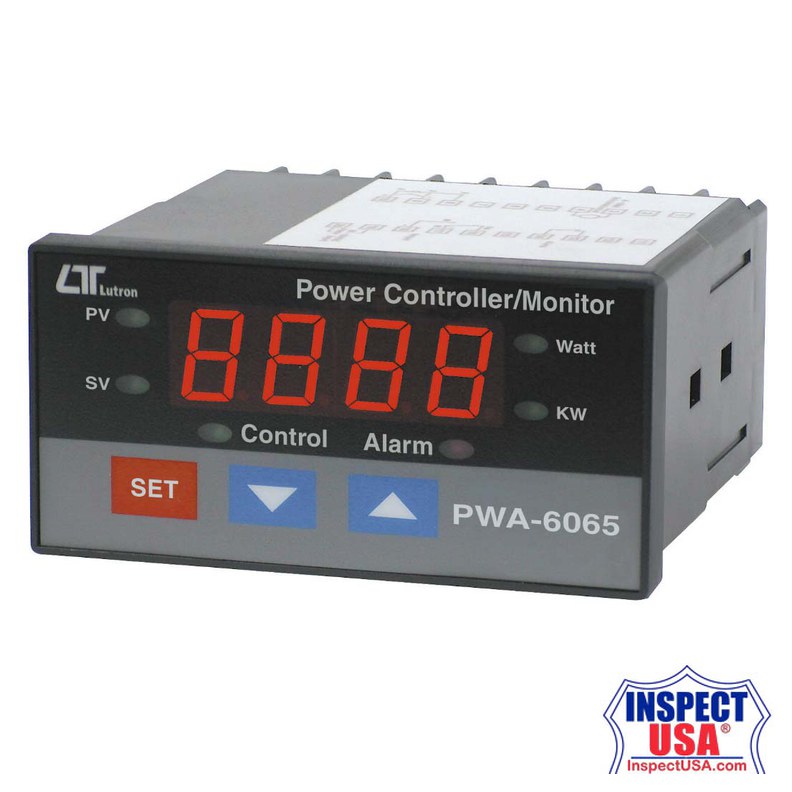

Lutron Power Controller/Monitor (PWA-6065)

Features:

Professional WATT meter with standard DIN case ( 96 x 48 mm ) and Control/Alarm function.
Microprocessor circuit ensures high accuracy and provide special functions and features.
Large red LED display, high brightness and easy to read.
Measurement range ( no cooperate the external CT and the PT ) : Watt : 0 to 6,000 Watt.
Input signal ( without PT, CT ) : ACV : 0 to 600 ACV, 40 to 400 Hz. ACA : 0 to 10 A, 40 to 400 Hz.
True rms for WATT measurement.
Current input can cooperate the external CT ( current transformer ) such as CT 1000/5A, CT 100/5A ...to expend the measurement range. The CT range can be adjusted with default.
Voltage input can cooperate the external PT ( voltage transformer ) to expend the measurement range. The PT range can be adjusted with default.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Control Relay will make action when the reading value reach to control value.
Alarm Relay will make action when the reading value reach to high/low alarm value.
