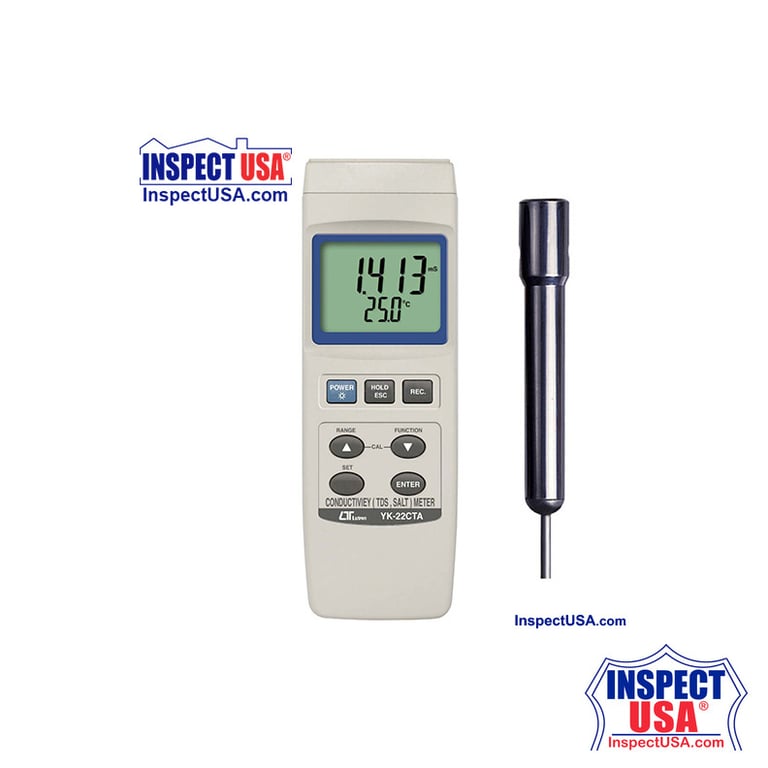

Conductivity TDS Meter (YK-22CTA) with Thermometer

Lutron Digital Water Conductivity and TDS Meter (YK-22CTA) with Built-In Thermometer

• 2 in 1, professional Conductivity and TDS (Total Dissolved Solids) Meter
• Conductivity, 2 ranges: 2 mS, 20 mS
• TDS, 2 ranges: 2,000 PPM, 20,000 PPM
• Conductivity / TDS meter with built in ATC automatic temperature compensation circuit, adjustable between 0 to 5.0% per 5° C.
• Conductivity/TDS meter uses carbon rod electrode
• Microprocessor circuit, intelligent function
• Records maximum and minimum readings with recall
• Data hold
• Auto shut off saves battery life
• RS 232 PC serial interface

Specifications:

• Circuit Custom one-chip of microprocessor LSI circuit.
• Display: 51 x 32 mm, dual function LCD display (digit size15 mm (0.6"))
• Sampling Time Approx. 0.8 second
• Power Supply: 9vDC battery (Alkaline or NiMH type)
• Measurement

F.S. - Full scale
mS - milli Simens
PPM - parts per million

• Weight 210 g/0.46 LB (meter only); 290 g/0.64 LB (meter and probe)
• Temp. (sensing from CD/TDS probe)
• Memory Recall: Records Maximum and Minimum readings with recall
• Dimensions:
  • Meter: 195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch )
  • Conductivity/TDS probe: 22mm diameter x 120mm length
• Data hold Hold the reading value on the display
• Power off: Auto shut off saves battery life (can be disabled)
• Data Output RS 232 computer serial interface
• Operating temperature range:
  • Meter: 32° to 122° F (0° to 50° C)
  • Probe: 32° to 140° F (0° to 60° C)
• Operating Humidity Range: 0 to 80% RH
• Overload "- - - -" symbol on the display

Supplied with:

• Conductivity/TDS probe
• Operation manual
• Carrying case

Optional Software:

LSFTKIT
